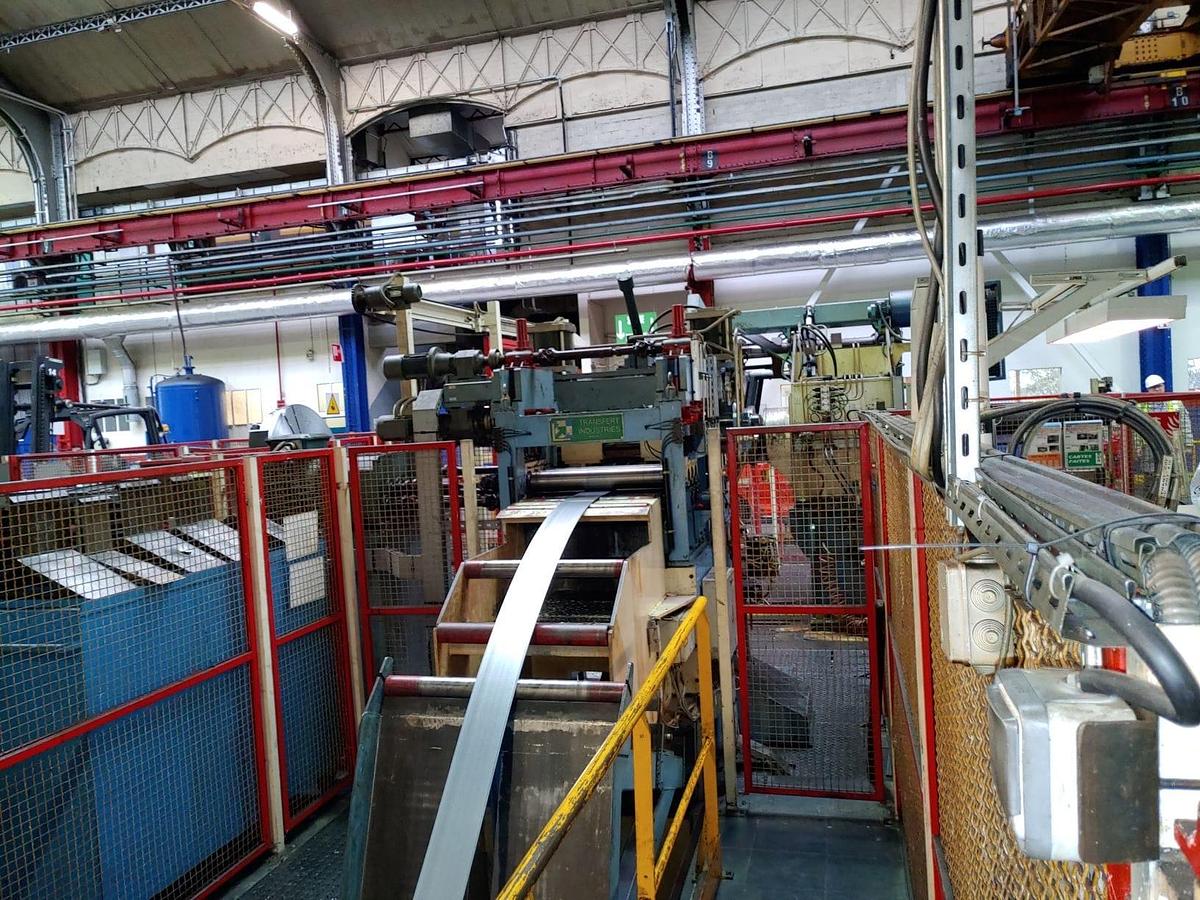

BRETT 650x7 camber and straightening line
BRETT 650x7 camber and straightening line
Location:Friuli-Venezia Giulia, Italy
Description
Line for uncoiling and straightening of coil width 650x7 thus composed:

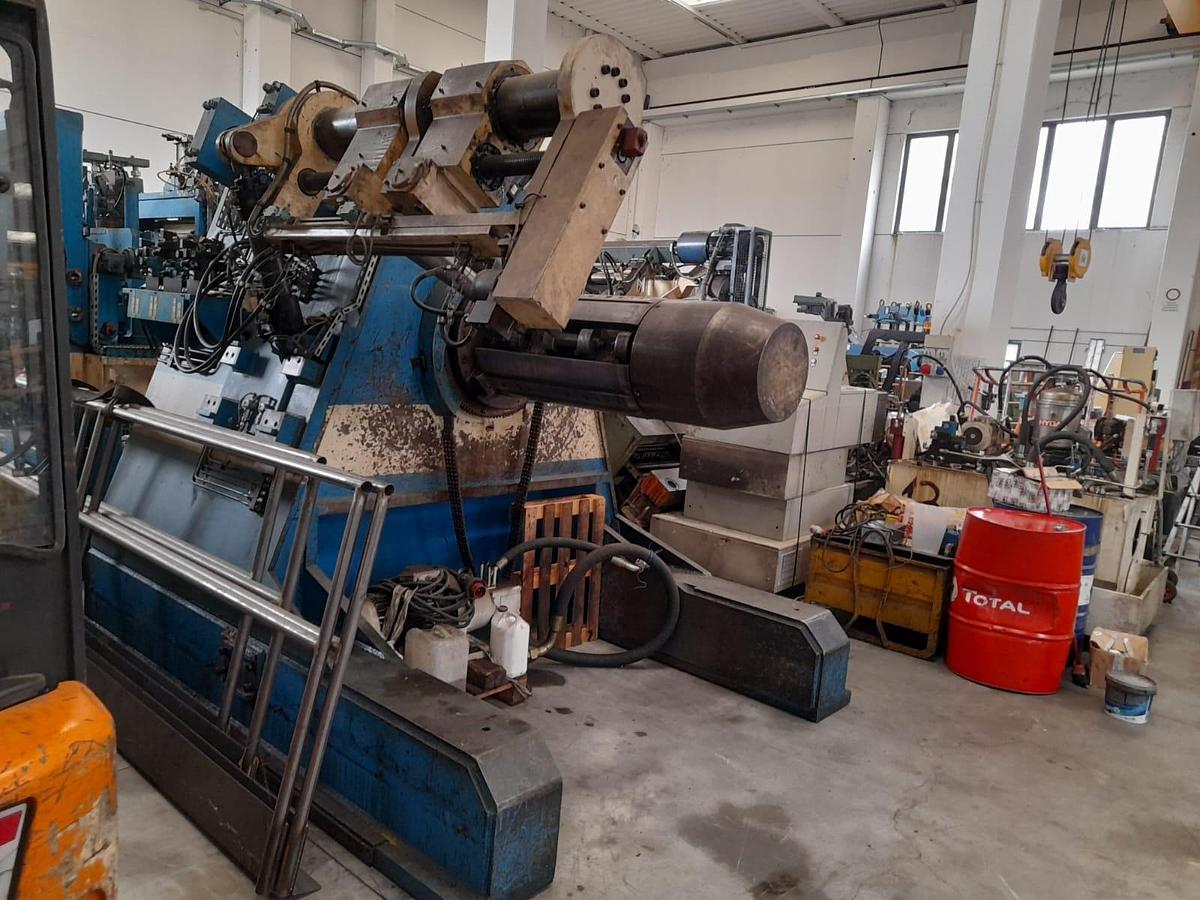

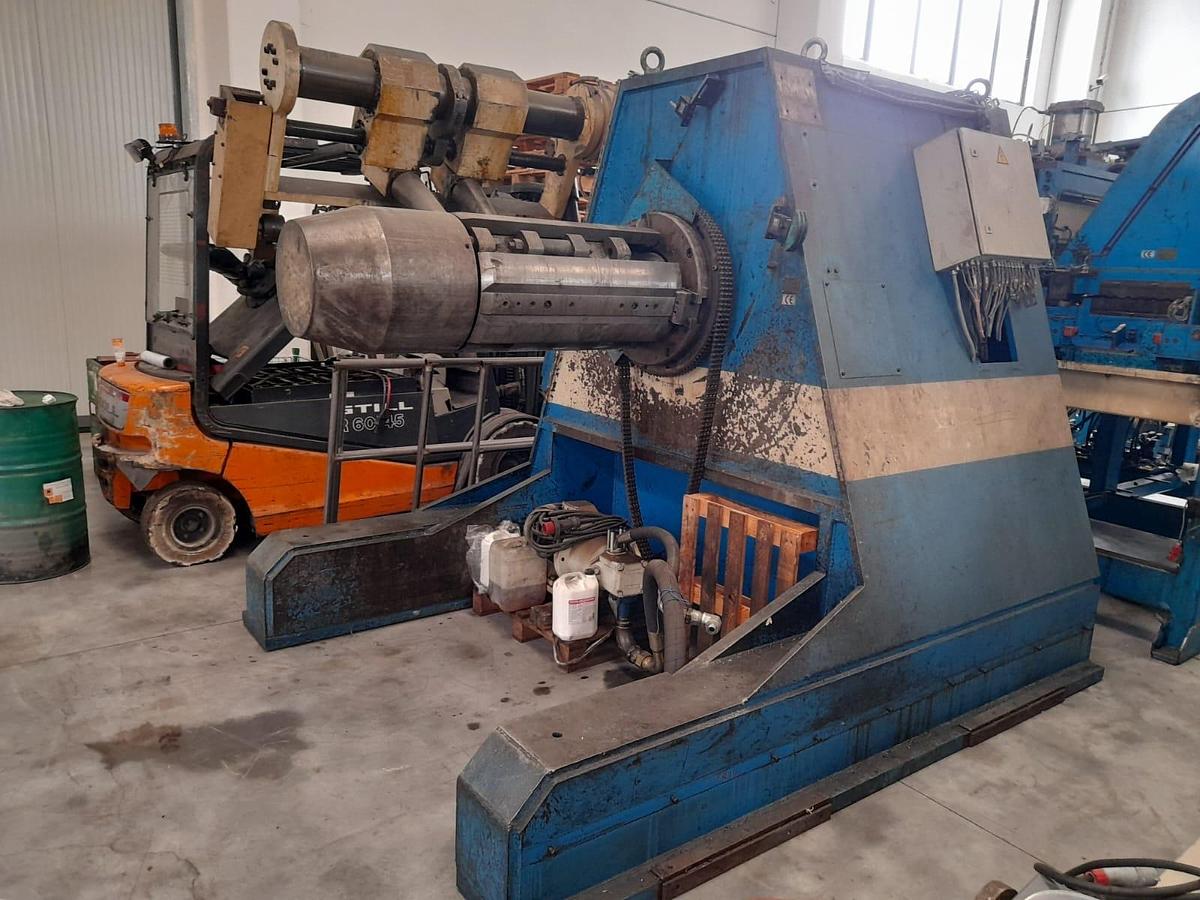

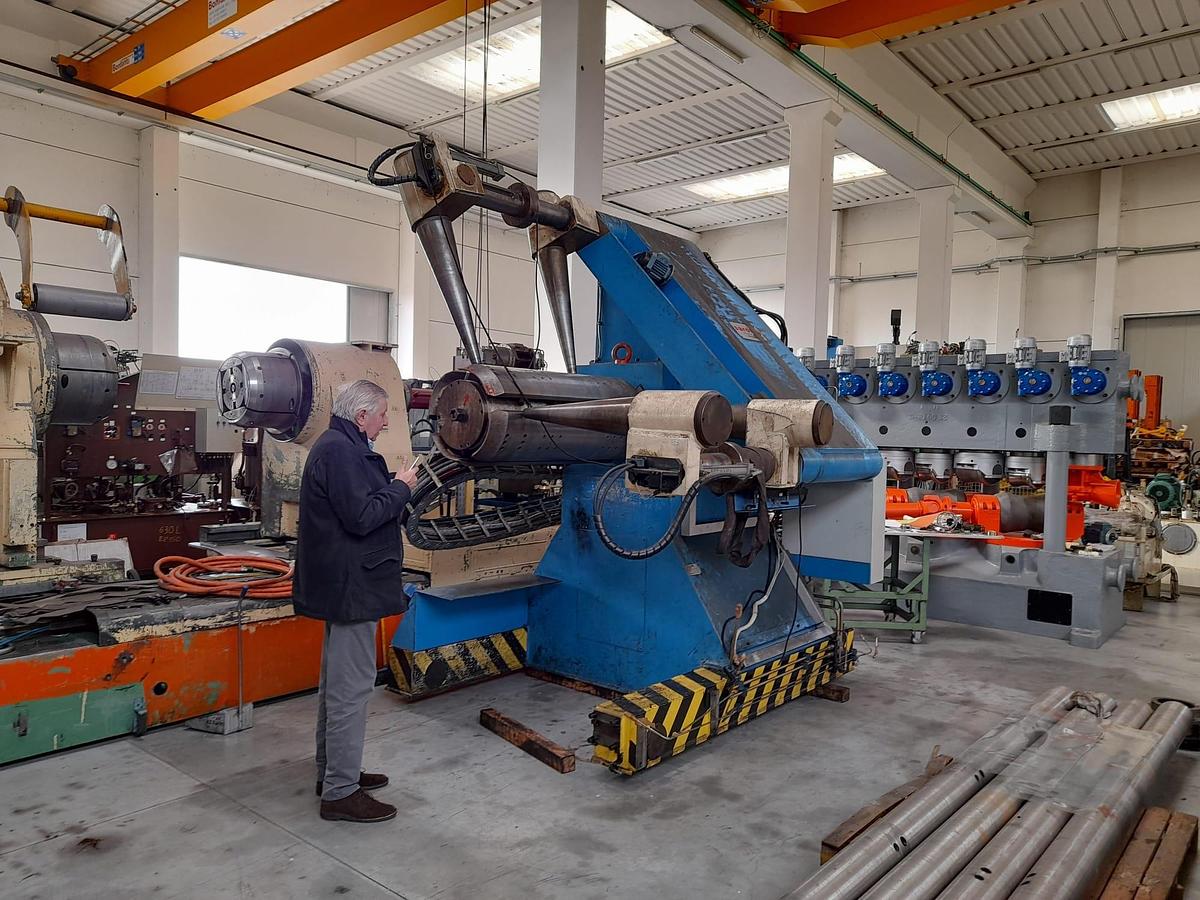

aspo svolgitore capacity 15 tons
large 800 spindle
accessories:
mobile and rotatable loading saddle of 180°
Aspo with fully hydraulic drive
hydraulic spindle expansion
double hydraulic actuator arm and motorized

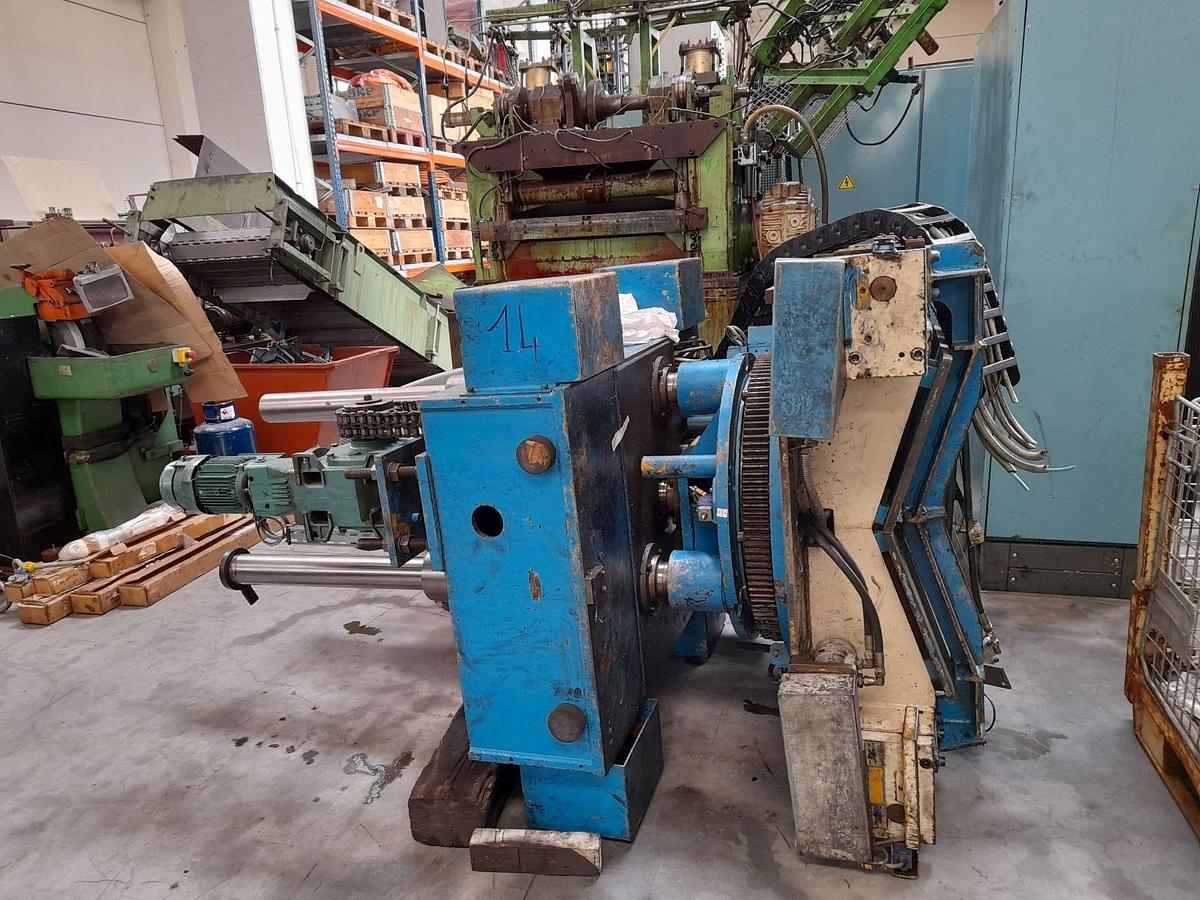

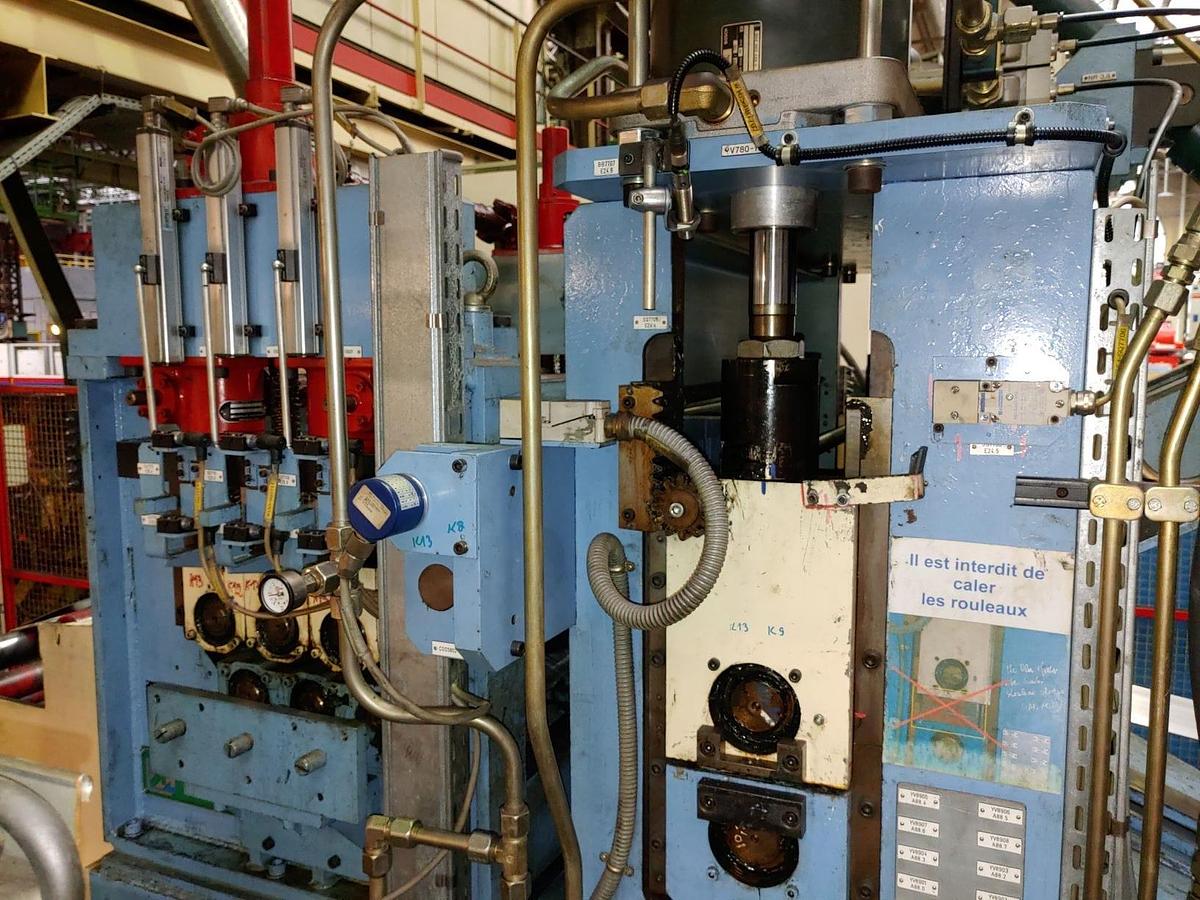

straightener with head introducer group of the roll
down command for motorized straightening rollers
hydraulic shear for head/tail clamping on the roll
Specifications
| Manufacturer | Brett |
| Model | Linea alimentazione grosso spessore 650x7 |
| Year | 1990 |
| Condition | Used |
| Stock Number | 648 |
| Feeding (compact direct/traditional feeder) | Traditional |
| Max width (mm) | 650 |
| Max thickness (mm) | 7 |
| Loading cradle | Yes |
| Max coil weight (ton) | 15 tons |
| Unwinding reel - Max width (mm) | 800 |
| Decoiler - Max weight (tons) | 15 |
| Unwinding reel - Hydraulic expansion | Yes |
| Unwinding reel - Pressing arm | It is double-motorized |
| Straightener - Number of rollers | 9 |
| Straightener - roller diameter | 125 |
| Rectifier - Max thickness (mm) | 7 |
| Straightener - Max speed (m/min) | 40 |
| Rectifier - Worktop adjustment | No |
| Rectifier - Introducer | Yes |
| Line - Total length (mm) | 5000 |
