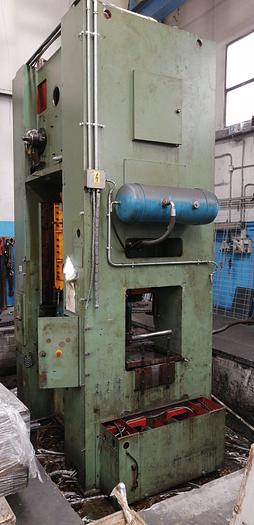

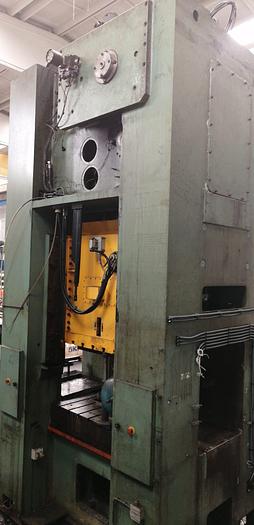

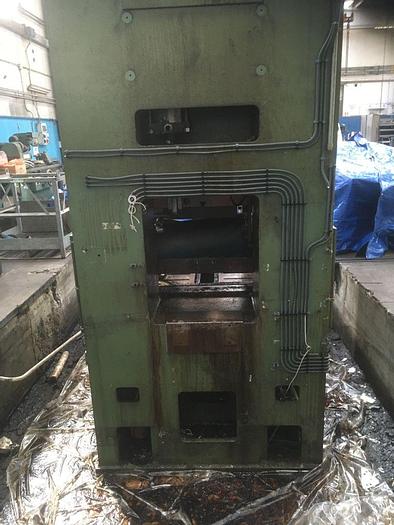

ZANI 150 ton
ZANI 150 ton
Location:Turin, Italy
Specifications
| Manufacturer | ZANI |
| Year | 1989 |
| Condition | Used |
| Stock Number | 366 |
| Ton | 150 |
| Frame (H/C) | H |
| Inspection | REQUIRED |
| Activation system (eccentric/link motion/knucle joint/oleodynamic/screw fly) | ECCENTRI |
| Table - x (mm) | 1200 |
| Table - y (mm) | 1000 |
| Slide - x (mm) | 1200 |
| Slide - y (mm) | 1000 |
| Slide - stroke (mm) | 100 |
| Table - width (mm) | 1200 |
| Slide - adjustable stroke (mm) | 100 |
| Number of strokes/minute | 20>60 |
| Tdc span (mm) | 750 |
| Lateral window (mm) | 600 |
| Piston rods | 1 |
| Number of strokes / min | 20> 60 |
| Subtype (DM / CDC) | DOUBLE UPRIGHT |
| Weight (ton) | 42 |
| External dimensions - X (mm) | 2300 |
| External dimensions - Y (mm) | 2000 |
| Accessories / other data | VARIATOR |
| External dimensions - height (mm) | 4500 |
| Drive system (eccentric / link motion / knucle joint / hydraulic / screw fly) | ECCENTRIC |
| Revision | TO REVIEW |
| Motor power (kW) | 36 |
| Slide - width (mm) | 1200 |
| Table - depth (mm) | 1000 |
| Electrical panel conditions (working/missing/complete inspection/inspection required) | MISSING |
| Slide - depth (mm) | 1000 |
| External dimensions - depth (mm) | 2000 |
| External dimensions - height above ground (mm) | 4500 |
| External dimensions - width (mm) | 2300 |
| Side window between the uprights (mm) | 600 |
| Light pms (mm) | 750 |
| Push points | 1 |
| Conections electrical panel (working, missing, overhauled, to be overhauled) | MISSING |
