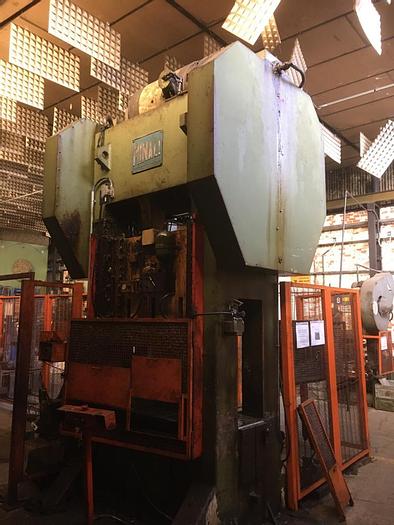

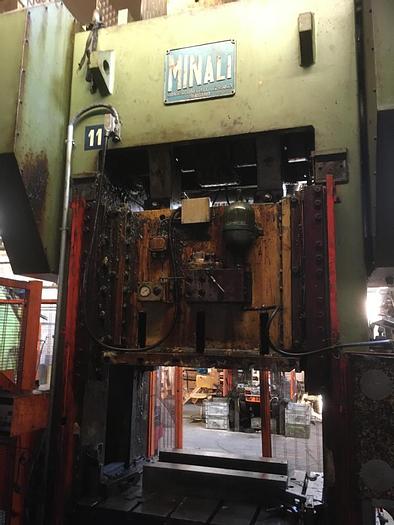

MINALI 200 ton
MINALI 200 ton
Location:Sant'Ambrogio di Torino, Italy
Specifications
| Manufacturer | MINALI |
| Model | 2M/200 |
| Year | 1984 |
| Condition | Used |
| Stock Number | 386 |
| Ton | 200 |
| Frame (H/C) | H |
| Conditions | WORKING |
| Activation system (eccentric/link motion/knucle joint/oleodynamic/screw fly) | ECCENTRIC |
| Table - x (mm) | 1250 |
| Table - y (mm) | 1000 |
| Slide - x (mm) | 1250 |
| Table - width (mm) | 1250 |
| Slide - y (mm) | 1000 |
| Number of strokes / min | 10/40 |
| Slide - stroke (mm) | 250 |
| Piston rods | 2 |
| Slide - registration (mm) | 100 |
| Number of strokes/minute | 10/40 |
| Subtype (DM / CDC) | DOUBLE UPRIGHT |
| External dimensions - X (mm) | 2000 |
| External dimensions - Y (mm) | 1500 |
| Lateral window (mm) | 420 |
| Drive system (eccentric / link motion / knucle joint / hydraulic / screw fly) | ECCENTRIC |
| Table - depth (mm) | 1000 |
| Slide - number of guides | 8 |
| Electrical components - number of motors | 1 |
| Motor power (kW) | 30 |
| Weight (ton) | 20 |
| Safety protections (frontal/posterior) | FRONTAL AND POSTERIOR |
| Slide - width (mm) | 1250 |
| External dimensions - height (mm) | 4300 |
| Slide - depth (mm) | 1000 |
| Electrical panel conditions (working/missing/complete inspection/inspection required) | WORKING |
| Accessories / other data | ELECTRONIC POWER SUPPLY (ELMEA LARGA 400); HYDRAULIC OVERLOAD |
| Push points | 2 |
| Sled - number of guides | 8 |
| Side window between the uprights (mm) | 420 |
| Slide - adjustment system (guided / ball / wedge) | GUIDED |
| External dimensions - width (mm) | 2000 |
| External dimensions - height above ground (mm) | 4300 |
| External dimensions - depth (mm) | 1500 |
| Motor power (kw) | 30 |
| Electrical components - No. of motors | 1 |
| Conections electrical panel (working, missing, overhauled, to be overhauled) | WORKING |
| Safety protections (front / rear) | FRONT AND REAR |
