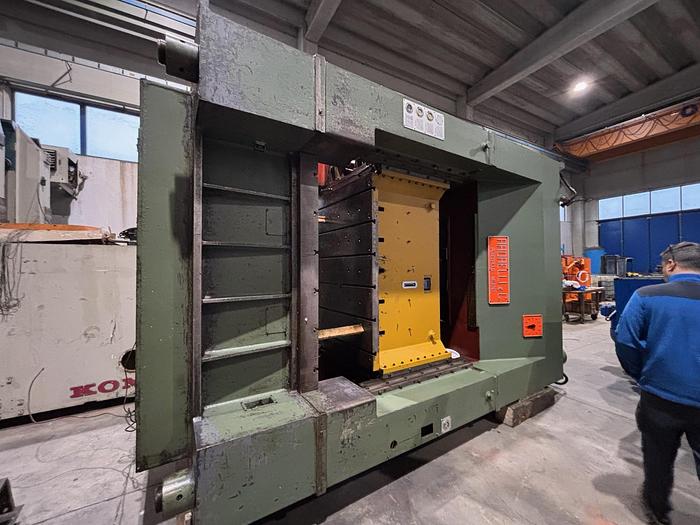

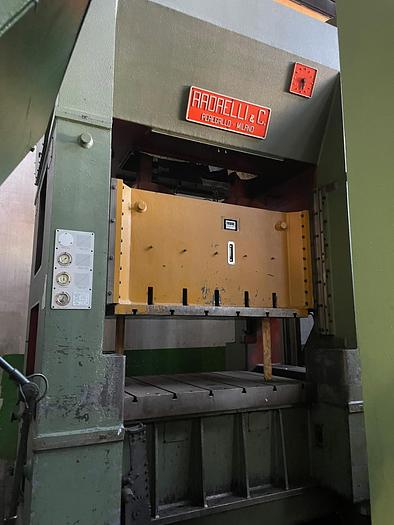

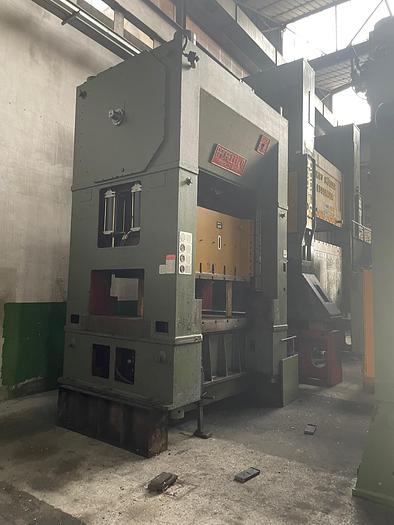

Radaelli 300 tons
New
Radaelli 300 tons
Location:Villanova d'Asti, Italy
Specifications
| Manufacturer | RADAELLI |
| Model | DELFINO 2 |
| Year | 1982 |
| Condition | Used |
| Serial Number | 19/82 |
| Stock Number | 608 |
| Ton | 300 |
| Table - width (mm) | 1800x1200 |
| Number of strokes/min | 20-65 |
| Subtype (DM/CDC) | DM2B |
| CE mark | No |
| Revision | 2025 |
| Slide - stroke (mm) | 200 |
| Drive system (eccentric/link motion/knucle joint/hydraulic/screw fly) | eccentric |
| Removable table (front/side/T-track) | no |
| Slide - width (mm) | 2000x1000 |
| Slide - adjustment (mm) | 150 |
| Push points | 2 |
| Sled - number of guides | 8 |
| Slide - adjustment system (guided/ball/wedge) | driven |
| Light pms (mm) | 800 |
| Front light between uprights (mm) | 1820 |
| Side window between uprights (mm) | 1000 |
| Blank holder cushion - total force (ton) | no |
| External dimensions - width (mm) | 3000 |
| External dimensions - depth (mm) | 1500 |
| External dimensions - height above ground (mm) | 4100 |
| Motor power (kw) | 14/44 |
| Electrical panel conditions (working, missing, overhauled, to be overhauled) | new |
| Photocells (front/rear) | Yes |
| Safety protections (front/rear) | Yes |
| Conditions | revised |
| Overload (hydraulic/mechanical) | plumber |
| Weight (ton) | 36 |
| Foundation (cm) | no |
