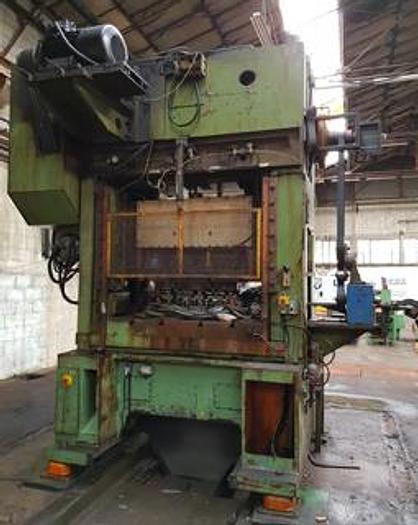

PIOVAN 160 ton
Sold
PIOVAN 160 ton
Location:France
Specifications
| Manufacturer | PIOVAN |
| Year | 1980 |
| Condition | Used |
| Stock Number | 338 |
| Ton | 160 |
| Frame | H FRAME |
| Table - x | 1350 |
| Table - y | 1120 |
| Table - width (mm) | 1350 |
| Piston rods | 2 |
| Slide - piston rods | 2 |
| Slide - x | 1400 |
| Slide - y | 700 |
| Slide - stroke - mm | 30 |
| Slide - number of strokes/minute | 125>460 |
| Slide - stroke (mm) | 30 |
| Mould mounting - tdc span (mm) | 500 |
| Slide - registration | 50 |
| Number of strokes / min | 125> 460 |
| External dimension - x (mm) | 3140 |
| External dimension - y (mm) | 1900 |
| Mould mounting - lateral window (mm) | 500 |
| Listing id | 338 |
| External dimension - height (mm) | 3700 |
| External dimension - weight (ton) | 25 |

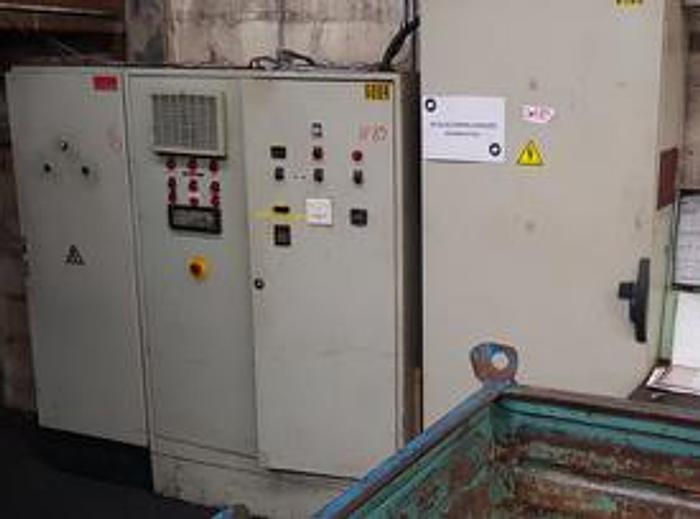

| Electrical components - electrical panel conditions - working | YES |
| Subtype | DOUBLE UPRIGHT |
| Electrical components - motor power (kw) | 35 |
| Conditions | WORKING |

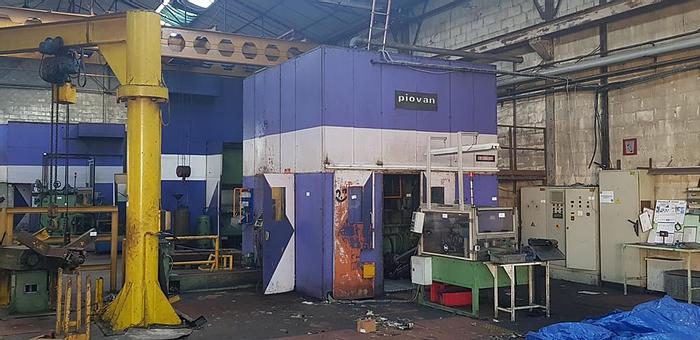

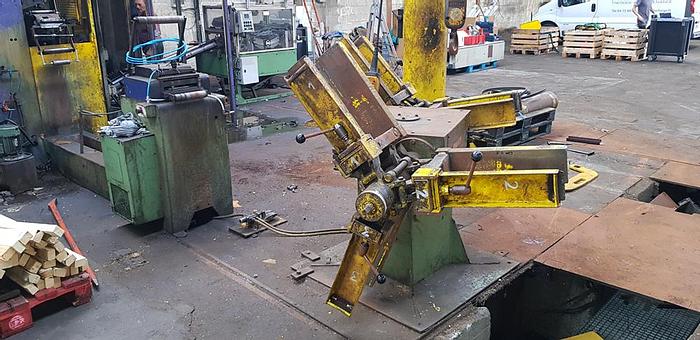

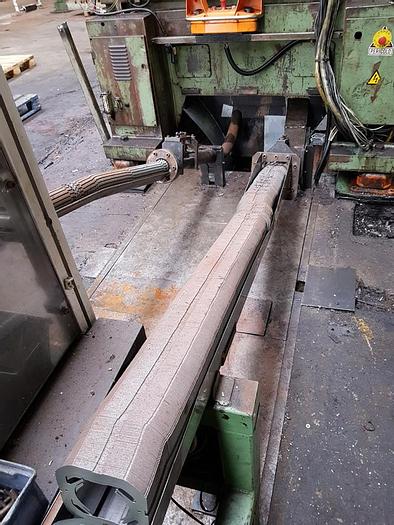

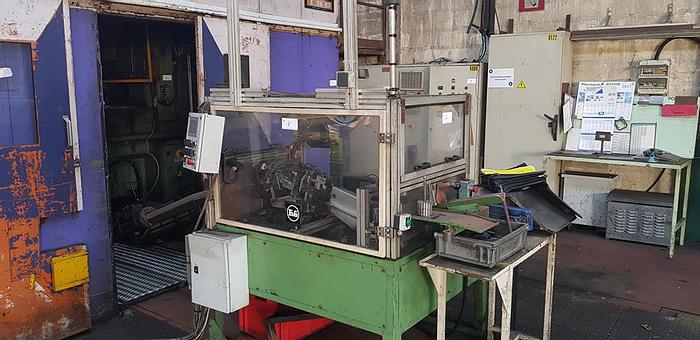

| Accessories / other date | MOLD, SOUNDPROOF BOOTH, ROLLS FEEDER, COIL LINE (WIDTH 250), UNCOILER, RECTIFIER, STACKING SYSTEM FOR SHEARED PIECES (LOWER), AUTOMATIC MACHINE FOR ORIENTING SHEARED PARTS |
| Slide - adjustment system (guided/sphere/wedge) | GUIDED |
| Die cushion - stroke (mm) | 30 |
| Travola - depth | 1120 |
| Sled - push points | 2 |
| Sled - width | 1400 |
| Sled - depth | 700 |
| Sled - registration | 50 |
| Mold assembly - pms light | 500 |
| Mold assembly - side window between the uprights (mm) | 500 |
| External dimensions - width (mm) | 3140 |
| External dimensions - depth (mm) | 1900 |
| External dimensions - height above ground (mm) | 3700 |
| External dimensions - weight (ton) | 25 |
| Electrical components - electrical panel condition - working | YES |
| Electrical components - more info | IN STANDARDS |
| Accessories / other data | ROLLER FEEDER, SOUND CABIN, MOLD, COIL LINE (WIDTH 250), LOWER BLANKED PIECES STACKING SYSTEM, DOUBLE UNWINDER, RECTIFIER, AUTOMATIC MACHINE FOR ORIENTING THE BLANKED PIECES |
| Blank holder cushion - stroke (mm) | 30 |
| Slide - adjustment system (guided / ball / wedge) | GUIDED |
