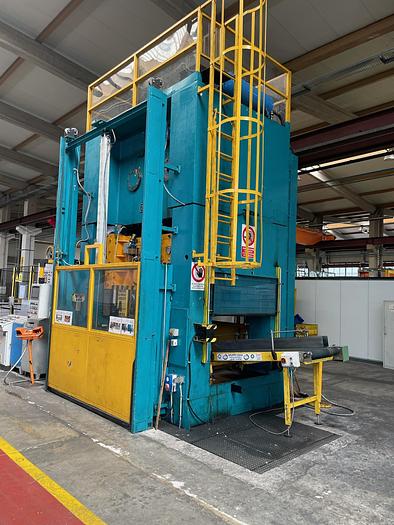

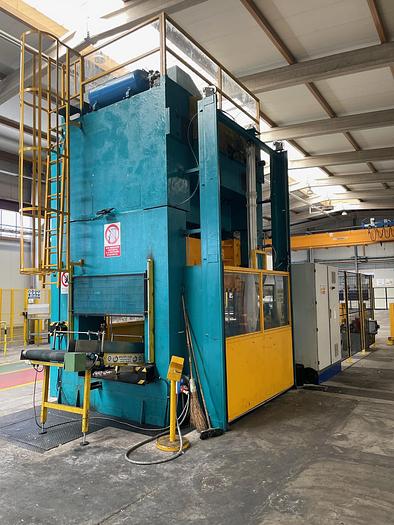

ZANI 300 tons
ZANI 300 tons
Location:Rieti, Italy
Specifications
| Manufacturer | ZANI |
| Model | Doppio Montante |
| Year | 1985 |
| Condition | Refurbished |
| Serial Number | AF 300 |
| Stock Number | 581 |
| Ton | 300 |
| Table - width (mm) | 1970x1650 |
| Slide - stroke (mm) | 350 |
| Number of strokes/min | 8-22 |
| Subtype (DM/CDC) | DM2B |
| CE mark | Yes |
| Revision | 2019 |
| Conditions | working |
| Drive system (eccentric/link motion/knucle joint/hydraulic/screw fly) | Eccentric |
| Slide - width (mm) | 1970x1650 |
| Slide - adjustment (mm) | 120 |
| Push points | 2 |
| Sled - number of guides | 4 |
| Slide - adjustment system (guided/ball/wedge) | Driven |
| Light pms (mm) | 1300 |
| Front light between uprights (mm) | 2000 |
| Side window between uprights (mm) | 1350 |
| Blank holder cushion - total force (ton) | No |
| External dimensions - width (mm) | 3200x3050 |
| External dimensions - height above ground (mm) | 5000+540 engine |
| Weight (ton) | 38-40 |
| Foundation (cm) | No |
| Electrical components - number of motors | 2 |
| Motor power (kw) | 30 |

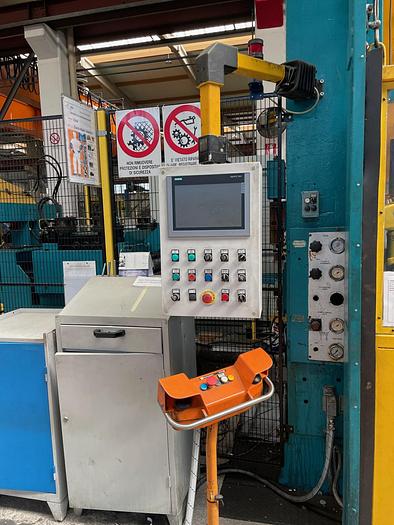

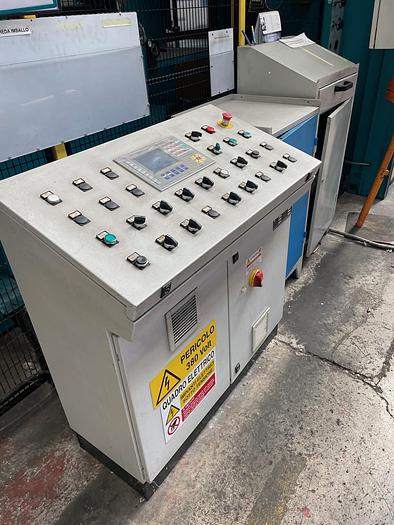

| Electrical panel conditions (working, missing, overhauled, to be overhauled) | New in 2019 |
| Safety protections (front/rear) | Yes |

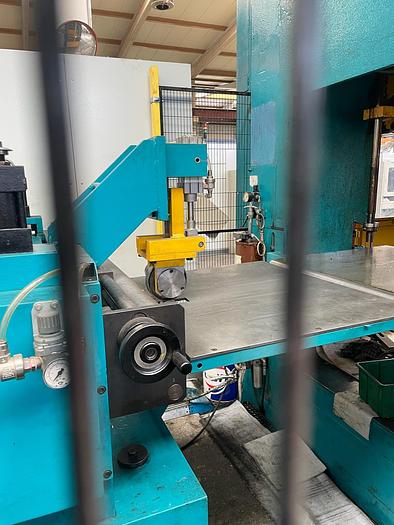

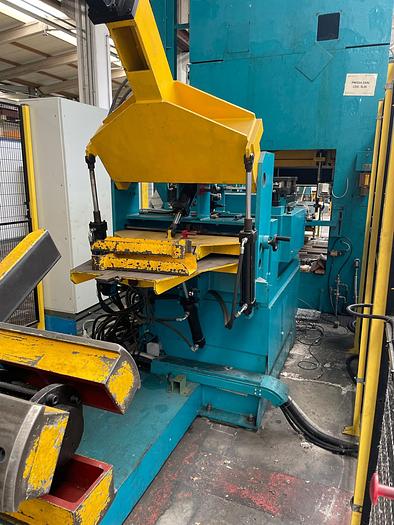

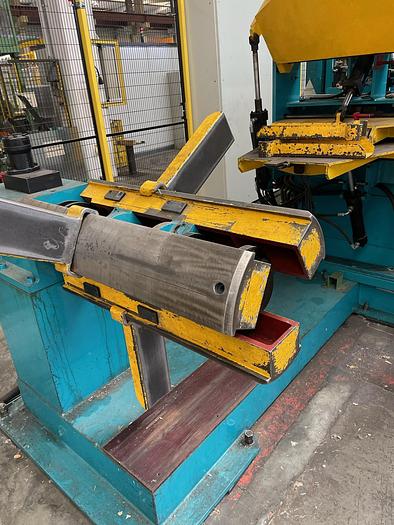

| Accessories / other data | Saronni compact power line width 550x 3 |
