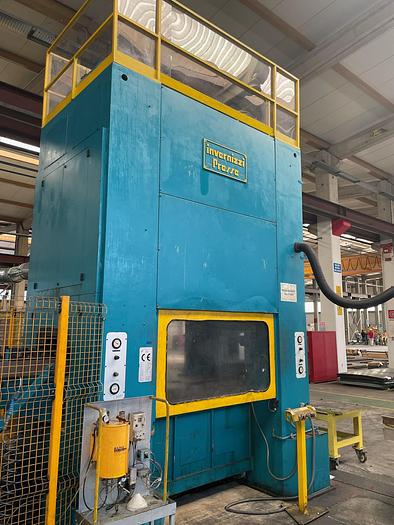

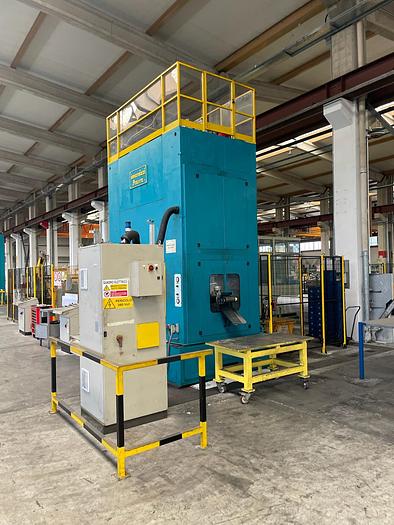

Winterize 400 tons
Sold
Winterize 400 tons
Location:Rome, Italy

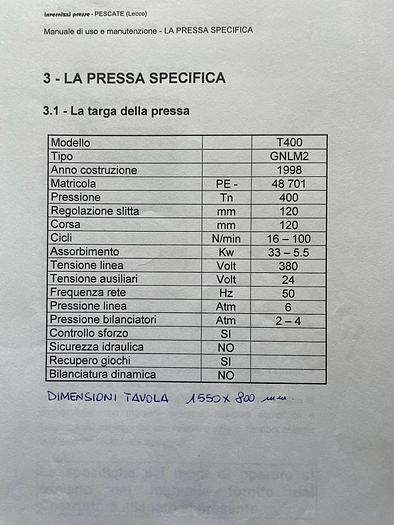

Specifications
| Manufacturer | INVERNIZZI |

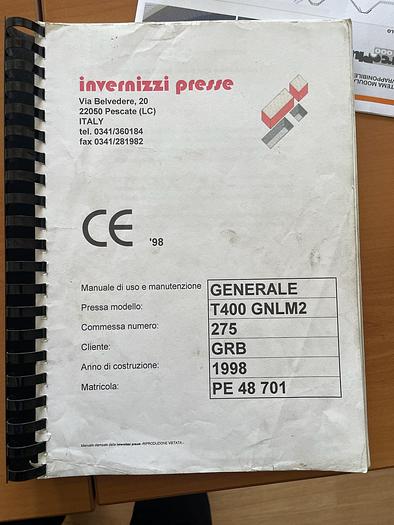

| Model | GNLM2 |
| Year | 1998 |
| Condition | Used |
| Serial Number | PE 48701 |
| Stock Number | 574 |
| Ton | 400 |
| Table - width (mm) | 1550x800 |
| Slide - stroke (mm) | 120 |
| Number of strokes/min | 16-100 |
| Subtype (DM/CDC) | DM2B |

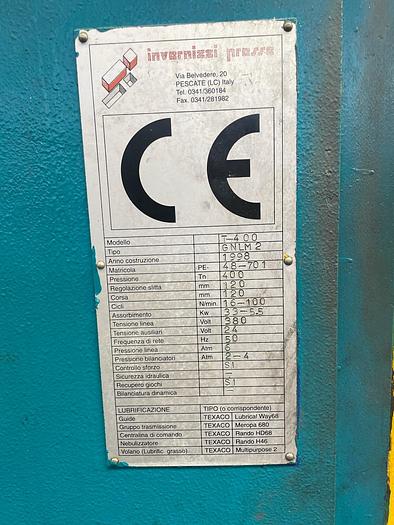

| CE mark | Yes |
| Revision | 2016 |
| Conditions | working |
| Drive system (eccentric/link motion/knucle joint/hydraulic/screw fly) | Eccentric |
| Slide - width (mm) | 1550x800 |
| Slide - adjustment (mm) | 120 |
| Push points | 2 |
| Sled - number of guides | 8 |
| Slide - adjustment system (guided/ball/wedge) | Driven |
| Light pms (mm) | 720* |
| Front light between uprights (mm) | 1700 |
| Side window between uprights (mm) | 680 |
| Blank holder cushion - total force (ton) | No |

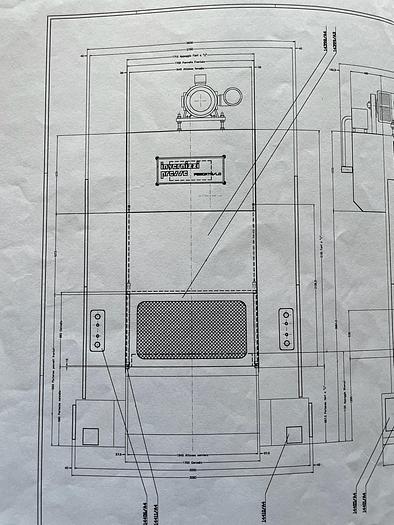

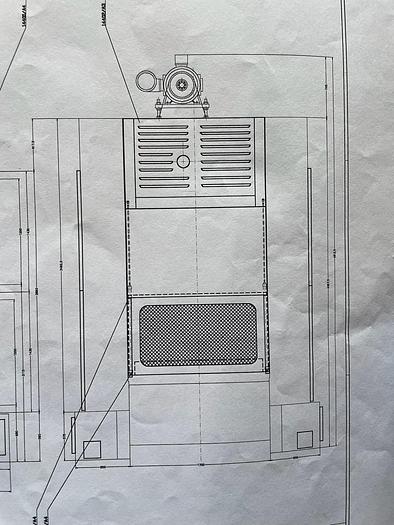

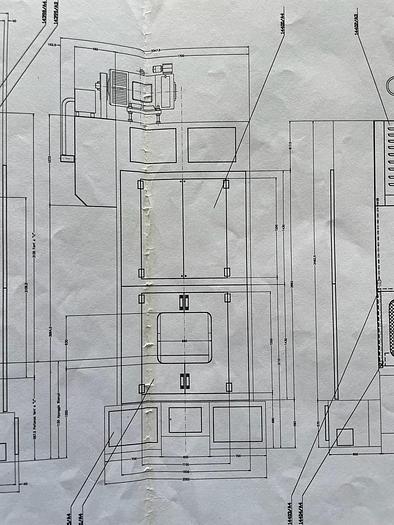

| External dimensions - width (mm) | 3000x2000 |
| External dimensions - height above ground (mm) | 4700 |
| Weight (ton) | 40 |
| Foundation (cm) | No |
| Motor power (kw) | 5-33 |

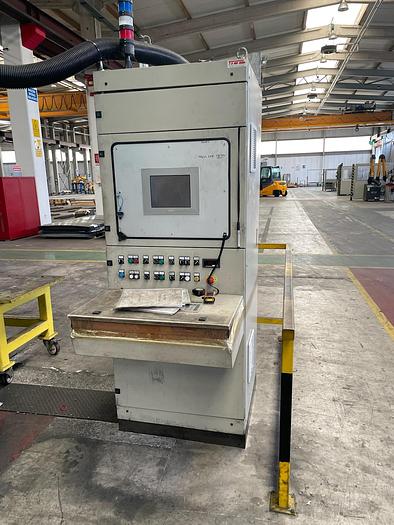

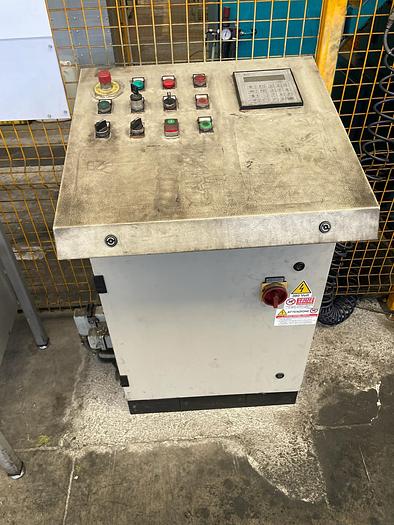

| Electrical panel conditions (working, missing, overhauled, to be overhauled) | working |
| Photocells (front/rear) | Yes |
| Safety protections (front/rear) | Yes |
| Overload (hydraulic/mechanical) | Stress control |

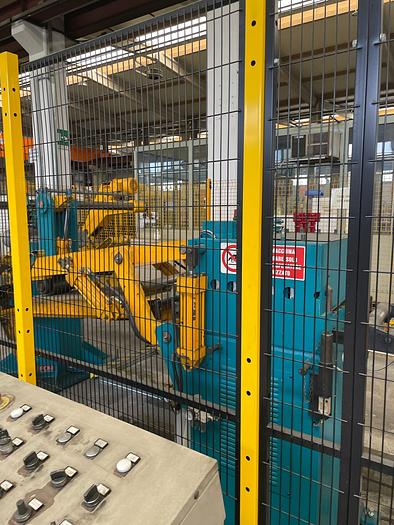

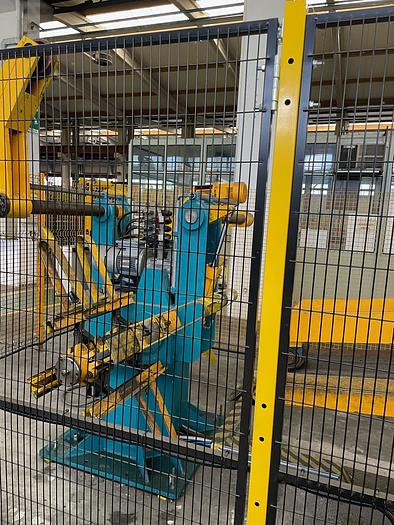

| Accessories / other data | Traditional iron power line 400x4 |
