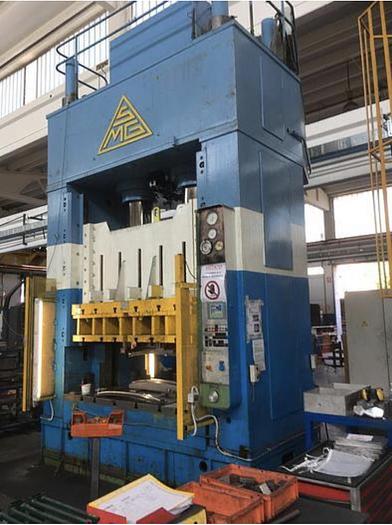

SMG 500
SMG 500
Location:Turin, Italy
Specifications
| Manufacturer | SMG |

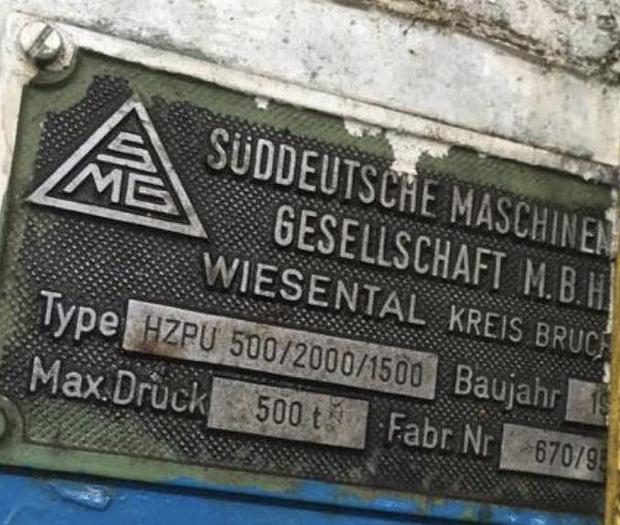

| Model | HZPU 500 |
| Year | 1960 |
| Condition | Used |
| Stock Number | 542 |
| Ton | 500 |
| Table - width (mm) | 2200x1500 |
| Subtype (DM/CDC) | DM |
| CE mark | No |

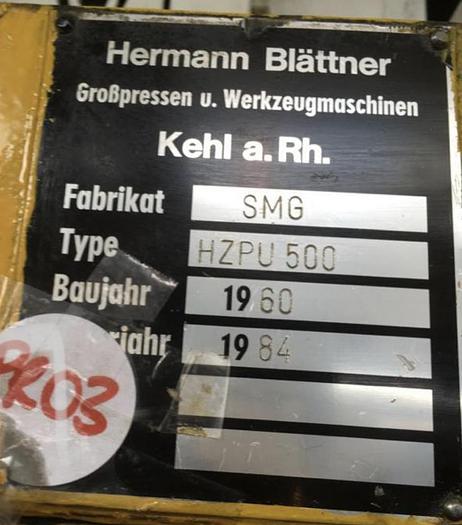

| Revision | 1984-2012 |
| Conditions | It works |
| Drive system (eccentric/link motion/knucle joint/hydraulic/screw fly) | Plumber |
| Slide - width (mm) | 2000x1500 |
| Slide - adjustable stroke (mm) | 800 |
| Push points | 2 |
| Approach speed | 500 |
| Working speed at 50% | 40 |
| 100% working speed | 20 |
| Ascent speed | 500 |
| Light pms (mm) | 1430 |
| Side window between uprights (mm) | 800 |
| Blank holder cushion - total force (ton) | 200 |
| Blank holder cushion - movement (hydraulic/pneumatic/hydropneumatic) | Plumber |
| Blank holder cushion - number of cushions | 4 |
| Blank holder cushion - retarder | Yes |
| Blank holder cushion - stroke (mm) | 300 |
| External dimensions - width (mm) | 3300x2500 |
| External dimensions - height above ground (mm) | 5500 |
| Weight (ton) | 55 |
| Foundation (cm) | 2500 |
| Electrical components - number of motors | 2 |

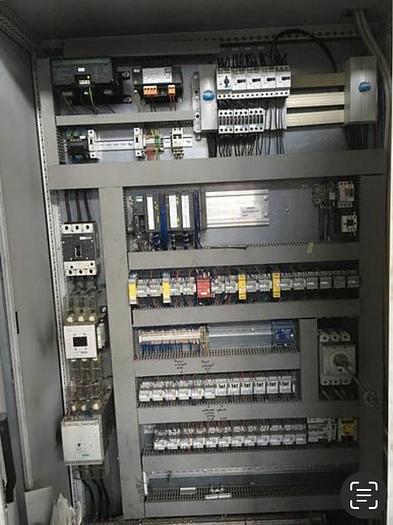

| Electrical panel conditions (working, missing, overhauled, to be overhauled) | working |
| Cylinder block valve | Yes |
| Mechanical slide lock | Yes |
| Proportional valves | Yes |
