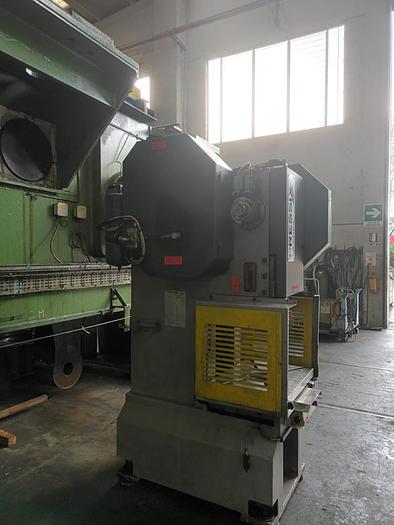

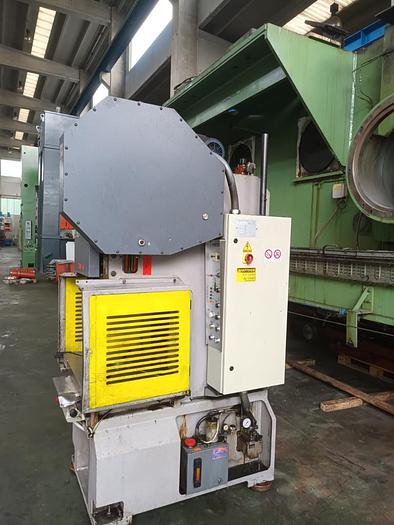

1999 PRESSIX 50 CNR 4
Sold
1999 PRESSIX 50 CNR 4
Location:Pinerolo, Italy
Specifications
| Manufacturer | PRESSIX |
| Model | 50 CNR 4 |
| Year | 1999 |
| Condition | Used |
| Stock Number | 535 |
| Ton | 50 |
| Board - width (mm) | 770 X 530 |
| Number of strokes/min | 90 |
| CE mark | YES |
| Drive system (eccentric/link motion/knucle joint/hydraulic/screw fly) | ECCENTRIC |
| Sled - width (mm) | 450 X 300 |
| Push points | 1 |
| Slide - adjustment system (guided/ball/wedge) | SPHERES |
| Light pms (mm) | 380 |
| External dimensions - width (mm) | 1000 X 1200 |
| External dimensions - depth (mm) | 3000 |
| Weight (tons) | 3500 |
| Electrical components - n° motors | 1 |
| Motor power (kw) | 4 |

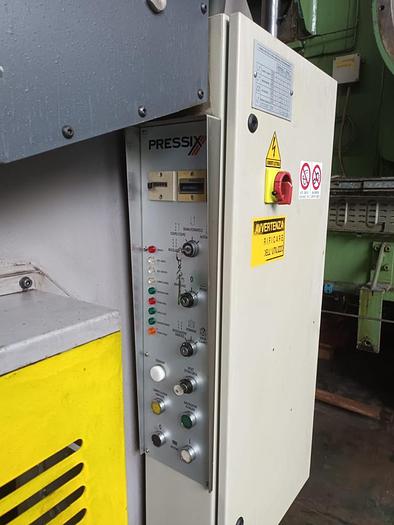

| Electrical panel conditions (working, missing, overhauled, to be overhauled) | working |
| Safety guards (front/rear) | SIDES |
| Conditions | WORKING |
| Overload (hydraulic/mechanical) | PLUMBER |
| Slide - adjustable stroke (mm) | 8-100 |
| Slide - registration (mm) | 70 |
| Slide - number of guides | 6 |
