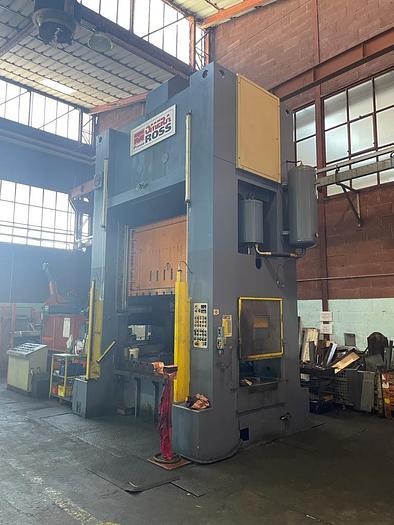

OMERA ROSS 400 TON
Sold
OMERA ROSS 400 TON
Location:Turin, Italy
Specifications
| Manufacturer | OMERA ROSS |
| Model | 400R 1M2S8 |
| Year | 2001 |
| Condition | Used |
| Stock Number | 531 |
| Ton | 400 |

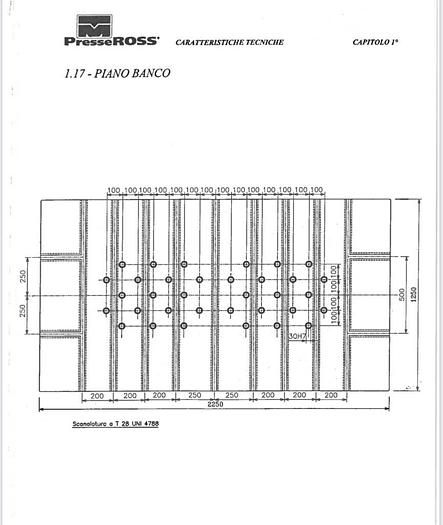

| Board - width (mm) | 2250X1250 |
| Number of strokes/min | 0-45 |
| Subtype (DM/CDC) | DM |
| CE mark | YES |
| Slide - stroke (mm) | 250 |
| Drive system (eccentric/link motion/knucle joint/hydraulic/screw fly) | ECCENTRIC |

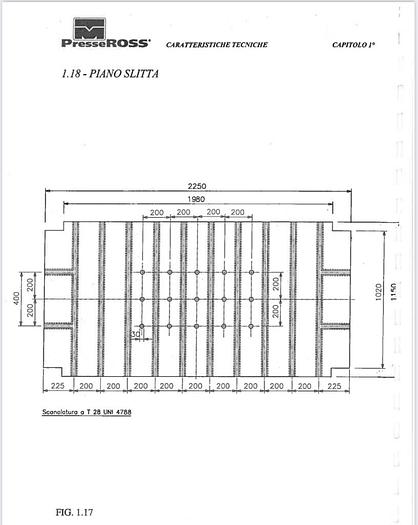

| Sled - width (mm) | 2250X1150 |
| Push points | 2 |
| Slide - adjustment system (guided/ball/wedge) | DRIVEN |
| Light pms (mm) | 1000 |
| Side window between posts (mm) | 900 |

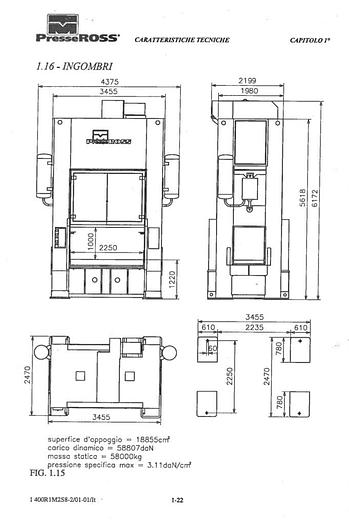

| External dimensions - width (mm) | 3455 |
| External dimensions - depth (mm) | 2470 |
| External dimensions - height above ground (mm) | 6172 |
| Weight (tons) | 58 |
| Electrical components - n° motors | 3 |
| Motor power (kw) | 32 |
| Electrical panel conditions (working, missing, overhauled, to be overhauled) | WORKING IN ACCORDANCE WITH CE STANDARDS |
| Photocells (front/rear) | YES |
| Conditions | WORKING |
| Overload (hydraulic/mechanical) | PLUMBER |
| Slide - registration (mm) | 135 |
| Slide - number of guides | 8 |
| Foundation (cm) | 50 |
| Accessories / other data | SARONNI COMPACT FEEDING LINE 500X6 |
