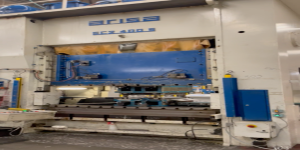

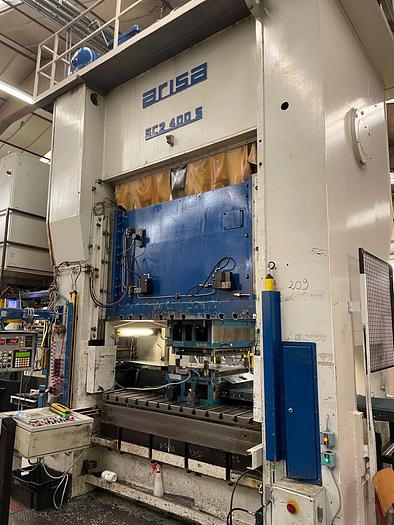

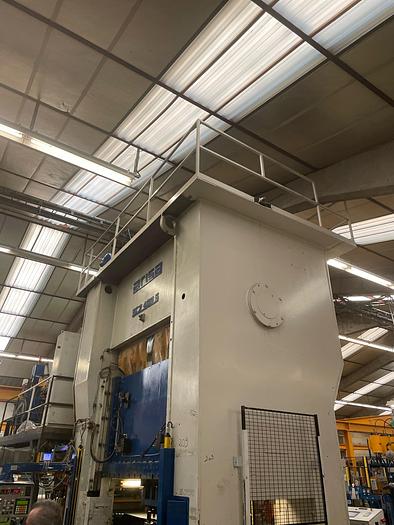

ARISSA 400 tons
ARISSA 400 tons
Location:Belgium
Specifications
| Manufacturer | Arisa |
| Model | SC 2-400-5 |
| Year | 1982 |
| Condition | Used |
| Serial Number | 400044210 |
| Stock Number | 530 |
| Ton | 400 |
| Board - width (mm) | 2000 x 1400 |
| Number of strokes/min | 30-80 |
| Subtype (DM/CDC) | DM2B |
| Revision | 2015 |
| Drive system (eccentric/link motion/knucle joint/hydraulic/screw fly) | Eccentric |
| Sled - width (mm) | 2000 x 1400 |
| Push points | 2 |
| Slide - adjustment system (guided/ball/wedge) | Driven |
| Light pms (mm) | 1065 |
| Front clearance between pillars (mm) | 2250 |
| Side window between posts (mm) | 900 x900 |
| External dimensions - width (mm) | 3450 |
| External dimensions - depth (mm) | 2550 |
| External dimensions - height above ground (mm) | 7000 |
| Weight (tons) | 65 |
| Motor power (kw) | 30 |
| Electrical panel conditions (working, missing, overhauled, to be overhauled) | Great |
| Photocells (front/rear) | Yes |
| Conditions | working |
| Overload (hydraulic/mechanical) | Yes |
| Electrical components - more info | New seeds |
| Slide - adjustable stroke (mm) | 25-250 |
| Slide - registration (mm) | 150 |
| Slide - number of guides | 8 |
| Foundation (cm) | No |

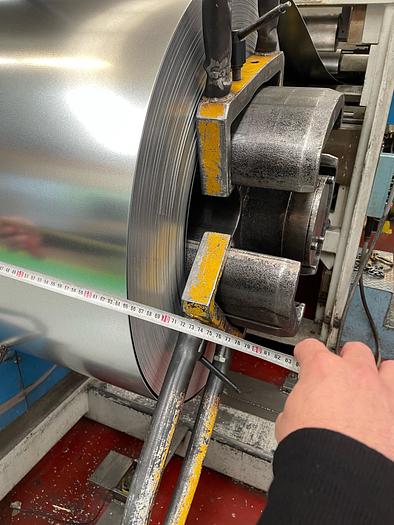

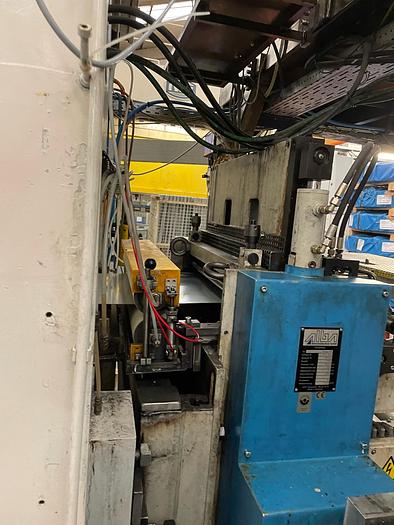

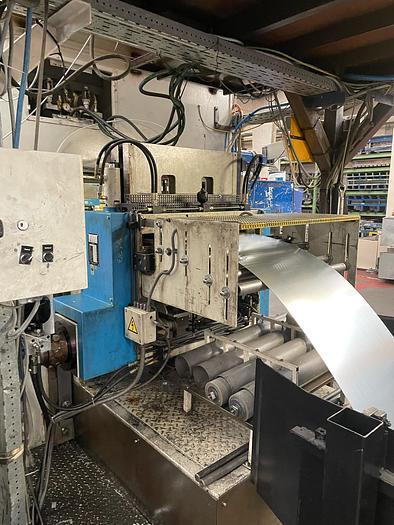

| Accessories / other data | Traditional CNC 800x3 feed line |
