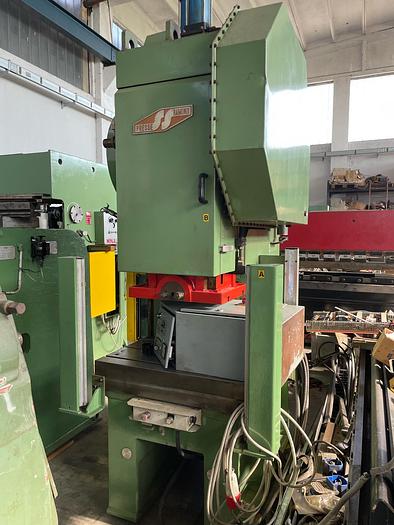

RAIMONDI 80 tons
Sold
RAIMONDI 80 tons
Location:Poirino, Italy
Specifications
| Manufacturer | Raimondi |
| Model | RF80R |
| Year | 1981 |
| Condition | Used |
| Serial Number | 236981 |
| Stock Number | 515 |
| Ton | 80 |
| Table - width (mm) | 900x580 |
| Number of strokes / min | 65 |
| Subtype (DM / CDC) | CDC |
| CE mark | No |
| Revision | 2000 |
| Drive system (eccentric / link motion / knucle joint / hydraulic / screw fly) | Eccentric |
| Slide - width (mm) | 500x400 |
| Push points | 1 |
| Sled - number of guides | 6 |
| Slide - adjustment system (guided / ball / wedge) | Sphere |
| Light pms (mm) | 500 |
| External dimensions - width (mm) | 1200 |
| External dimensions - depth (mm) | 1400 |
| External dimensions - height above ground (mm) | 3000 |
| Motor power (kw) | 6 |
| Conections electrical panel (working, missing, overhauled, to be overhauled) | Working |
| Photocells (front / rear) | Yes |
| Overload (hydraulic / mechanical) | Plumber |
| Conditions | working |
| Slide - adjustable stroke (mm) | 10-120 |
| Slide - registration (mm) | 100 |
| Weight (ton) | 5,6 |
