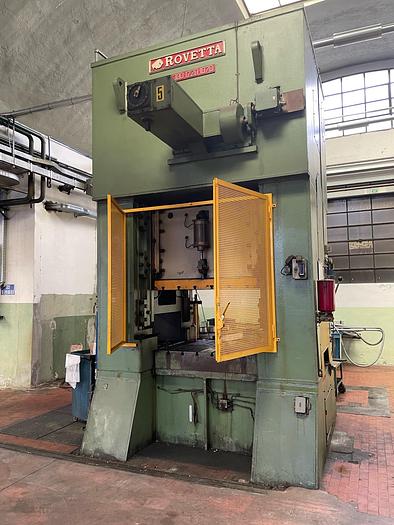

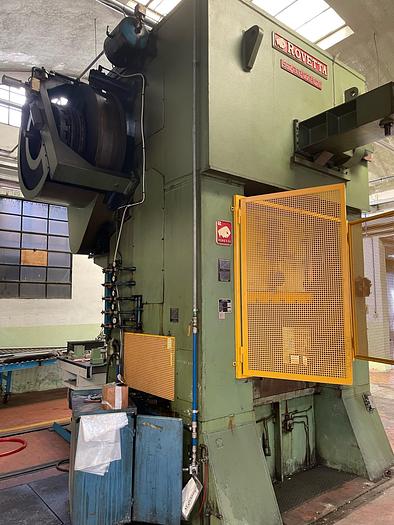

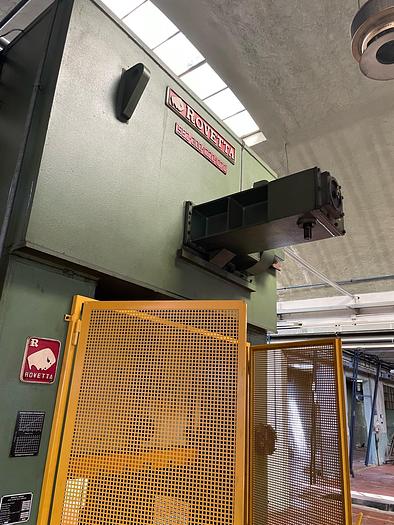

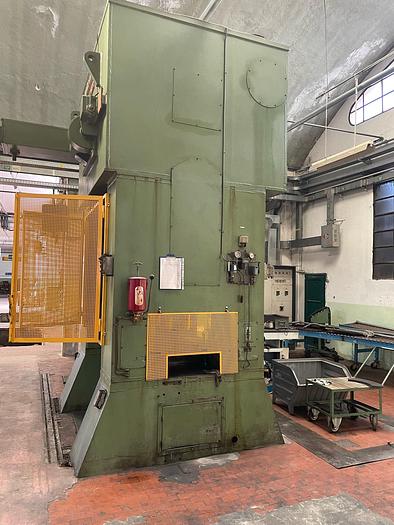

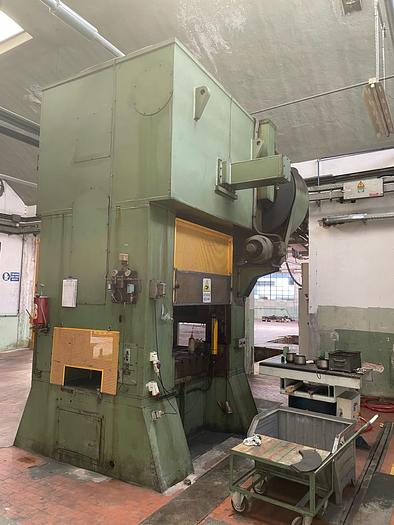

ROVETTA 300 ton
New
ROVETTA 300 ton
Location:Lumezzane, Italy
Specifications
| Manufacturer | ROVETTA |
| Model | MEDUSA 3 |
| Year | 1985 |
| Condition | Used |
| Serial Number | 1207 |
| Stock Number | 514 |
| Ton | 300 |
| Table - width (mm) | 1220x1070 |
| Number of strokes / min | 15 |
| Slide - stroke (mm) | 305 |
| Number of strokes/min | 0-25 |
| Subtype (DM / CDC) | DM |
| Subtype (DM/CDC) | DM |
| CE mark | No |
| Revision | 2010 |
| Conditions | working |
| Drive system (eccentric/link motion/knucle joint/hydraulic/screw fly) | Eccentric |
| Sled - width (mm) | 1220x1070 |
| Sled - recording (mm) | 152 |
| Drive system (eccentric / link motion / knucle joint / hydraulic / screw fly) | Eccentric |
| Slide - width (mm) | 1220x1070 |
| Push points | 2 |
| Sled - number of guides | 8 |
| Sled - adjustment system (guided/ball/wedge) | Guided |
| PMS light (mm) | 705 |
| Side window between pillars (mm) | 700 |
| Slide - adjustment system (guided / ball / wedge) | Guided |
| Blank holder cushion - total force (ton) | 100 |
| Light pms (mm) | 705 |
| Blanking pad - movement (hydraulic/pneumatic/hydropneumatic) | Tire |
| Blank holder cushion - stroke (mm) | 150 |
| External dimensions - width (mm) | 2400 |
| Side window between the uprights (mm) | 700 |
| External dimensions - depth (mm) | 2000 |
| External dimensions - height above ground (mm) | 4500 |
| Weight (ton) | 45 |
| Blank holder cushion - movement (hydraulic / pneumatic / hydro-pneumatic) | Tire |
| Foundation (cm) | Yes |
| Electrical components - number of motors | 2 |
| Engine power (kW) | 30 |
| Electrical panel conditions (working, missing, overhauled, to be overhauled) | working |
| Photocells (front/rear) | Posteriori |
| Safety guards (front/rear) | Fronts |
| Electrical components - No. of motors | 2 |
| Overload (hydraulic/mechanical) | Plumber |
| Motor power (kw) | 30 |
| Conections electrical panel (working, missing, overhauled, to be overhauled) | working |
| Photocells (front / rear) | Rear |
| Safety protections (front / rear) | Fronts |
| Overload (hydraulic / mechanical) | Plumber |
| Slide - registration (mm) | 152 |
