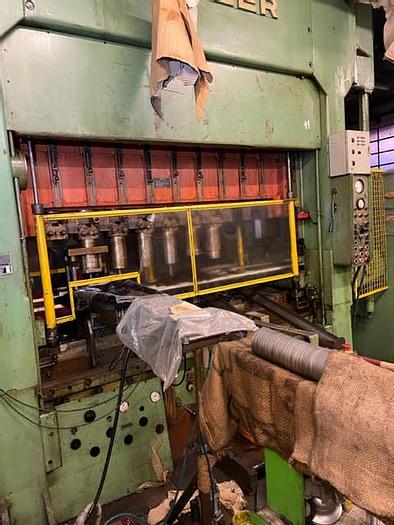

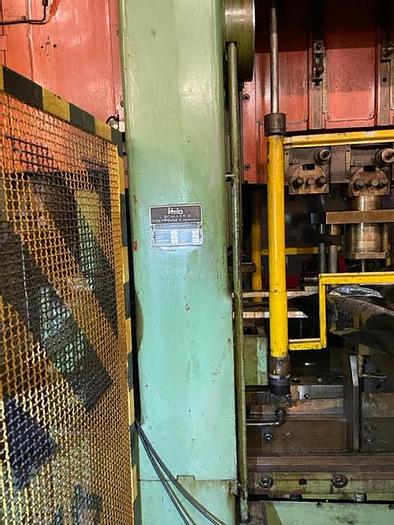

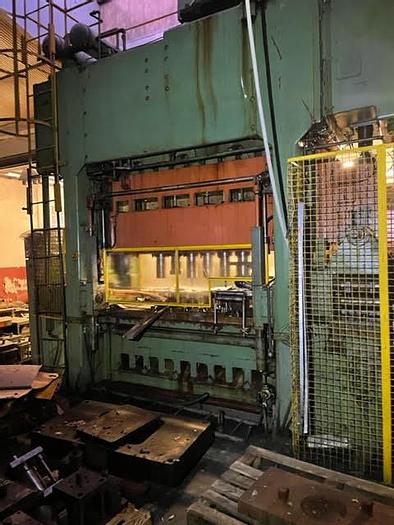

1978 SCHULER DM TRANSFER
1978 SCHULER DM TRANSFER
Location:Valdobbiadene, Italy
Specifications
| Manufacturer | SCHULER |
| Model | DM TRANSFER |
| Year | 1978 |
| Condition | Used |

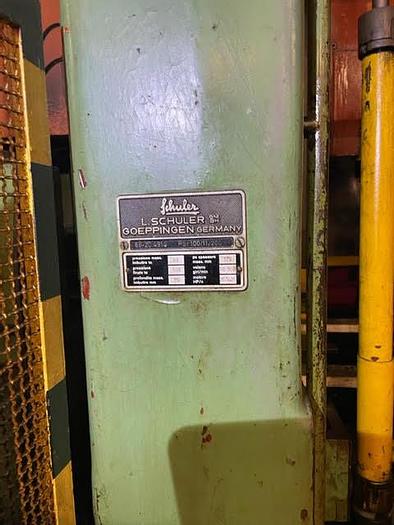

| Serial Number | 66 - 20 - 4909 |
| Stock Number | 484 |
| Ton | 100 + 25 |
| Table - x (mm) | 1966 |
| Slide - stroke (mm) | 200 |
| Number of strokes/minute | 50 |
| Frame (H/C) | H, transfer |
| Conditions | working |
| Activation system (eccentric/link motion/knucle joint/oleodynamic/screw fly) | eccentric |
| Table - y (mm) | 460 |
| Slide - x (mm) | 1900 |
| Slide - y (mm) | 230 |
| Slide - registration (mm) | 20 |
| bdc span (mm) | 510 |
| Front span between the pillars (mm) | 2158 |
| Lateral window (mm) | 630 |
| Die cushion - number of cushions | 9 |
| External dimensions - X (mm) | 4000 |
| External dimensions - Y (mm) | 1500 |
| External dimensions - height (mm) | 4500 |
| Weight (ton) | 35 |
| Foundation (cm) | 40 |
| Electrical components - number of motors | 1 |
| Motor power (kW) | 26 |
| slide - adjustment system | adjustment screw |
