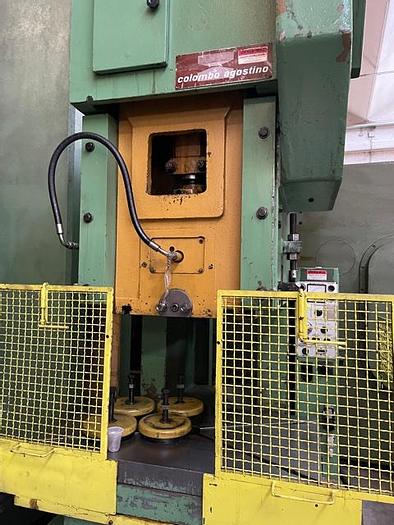

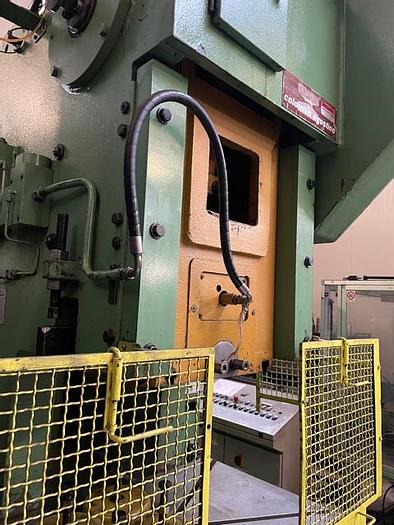

COLOMBO AGOSTINO 160 ton
Sold
COLOMBO AGOSTINO 160 ton
Location:Valdobbiadene, Italy

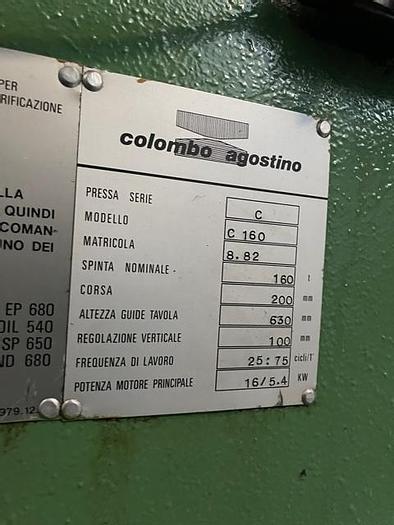

Specifications
| Manufacturer | COLOMBO AGOSTINO |
| Model | c160 |
| Year | 1982 |
| Condition | Used |
| Serial Number | 8.82 |
| Stock Number | 457 |
| Ton | 160 |
| Table - x (mm) | 1100 |
| Slide - stroke (mm) | 20/200 |
| Table - width (mm) | 1100 |
| Number of strokes/minute | 25/75 |
| Frame (H/C) | C FRAME |
| Conditions | WORKING |
| Table - y (mm) | 700 |
| Activation system (eccentric/link motion/knucle joint/oleodynamic/screw fly) | ECCENTRIC |
| Slide - x (mm) | 600 |
| Slide - y (mm) | 450 |
| Slide - adjustable stroke (mm) | 20/200 |
| Slide - registration (mm) | 100 |
| Piston rods | 1 |
| Slide - number of guides | 6 |
| Slide - adjustament system (guided/sphere/wedge) | SPHERE |
| Tdc span (mm) | 630 |
| External dimensions - X (mm) | 1500 |
| External dimensions - Y (mm) | 2000 |
| External dimensions - height (mm) | 3600 |
| Weight (ton) | 16 |
| Electrical components - number of motors | 1 |

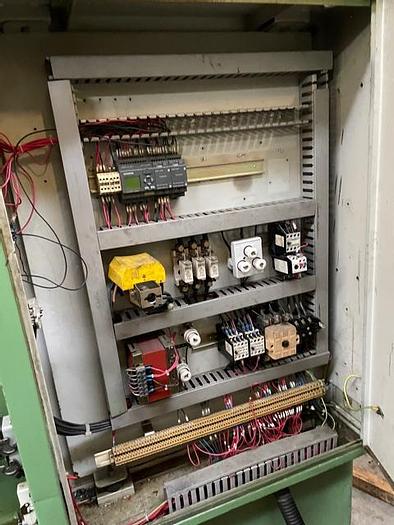

| Electrical panel conditions (working/missing/complete inspection/inspection required) | WORKING |
| Safety protections (frontal/posterior) | FRONTAL |
| Number of strokes / min | 25/75 |
| Subtype (DM / CDC) | SWAN NECK |
| Hydraulic overload | YES |
| Drive system (eccentric / link motion / knucle joint / hydraulic / screw fly) | ECCENTRIC |
| Table - depth (mm) | 700 |
| Slide - width (mm) | 600 |
| Slide - depth (mm) | 450 |
| Push points | 1 |
| Sled - number of guides | 6 |
| Slide - adjustment system (guided / ball / wedge) | BALL |
| Light pms (mm) | 630 |
| External dimensions - width (mm) | 1500 |
| External dimensions - depth (mm) | 2000 |
| Electrical components - No. of motors | 1 |
| Conections electrical panel (working, missing, overhauled, to be overhauled) | WORKING |
| Safety protections (front / rear) | FRONTAL |
| External dimensions - height above ground (mm) | 3600 |
| Overload (hydraulic / mechanical) | PLUMBER |
