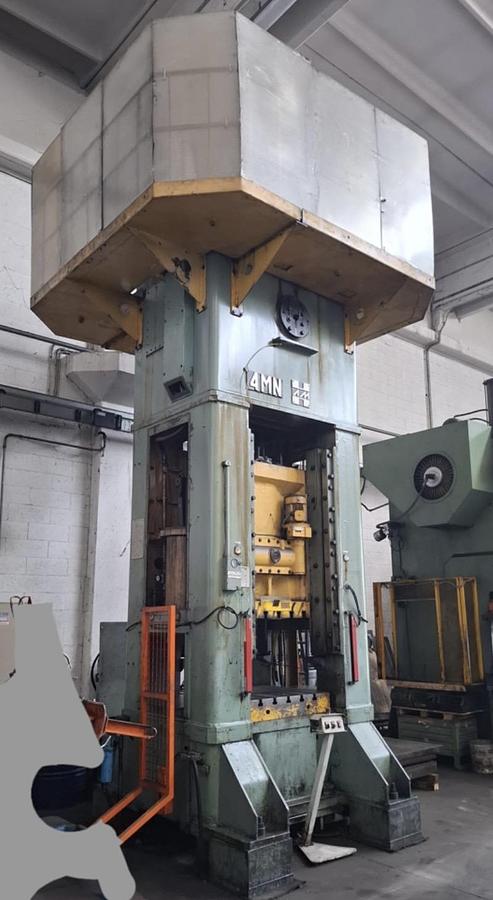

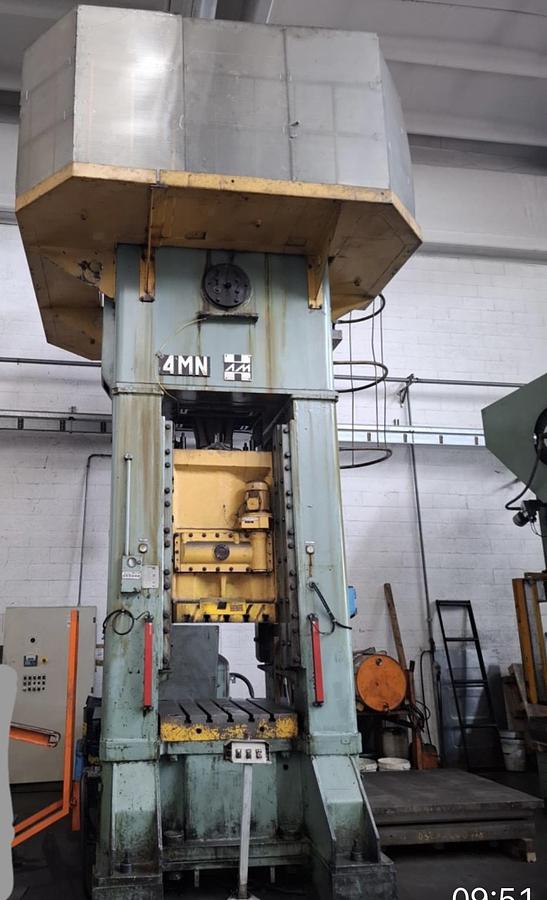

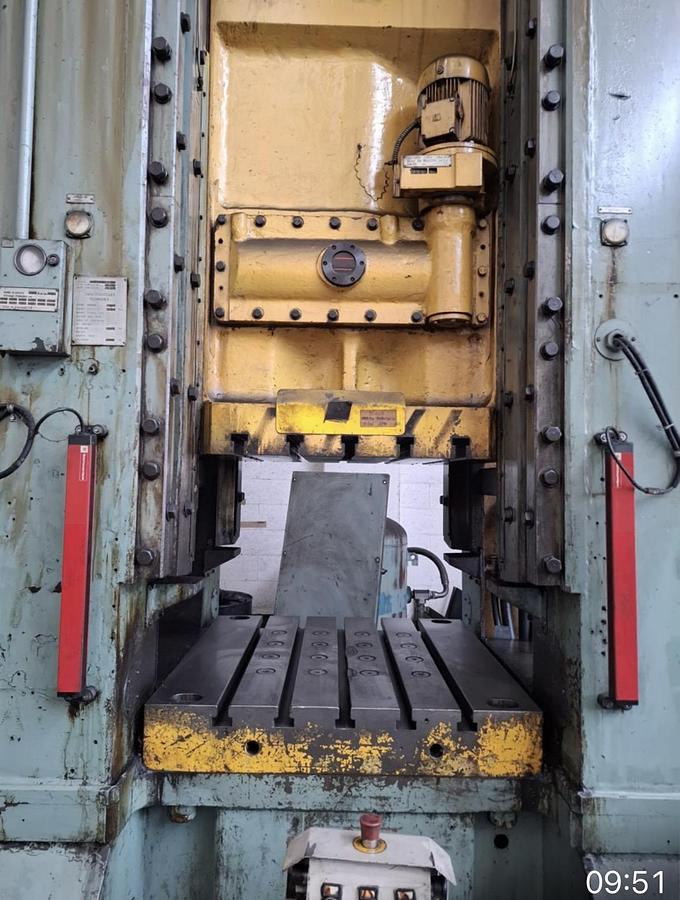

TMP VORONEZ 400 ton
TMP VORONEZ 400 ton
Location:Bologna, Italy
Specifications

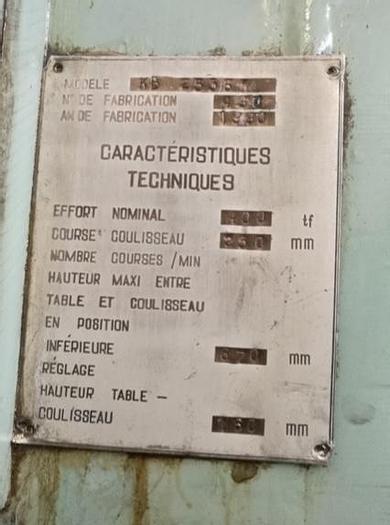

| Manufacturer | TMP VORONEZ |
| Model | KB9536 |
| Year | 1990 |
| Condition | Used |
| Serial Number | 950 |
| Stock Number | 459 |
| Ton | 400 |

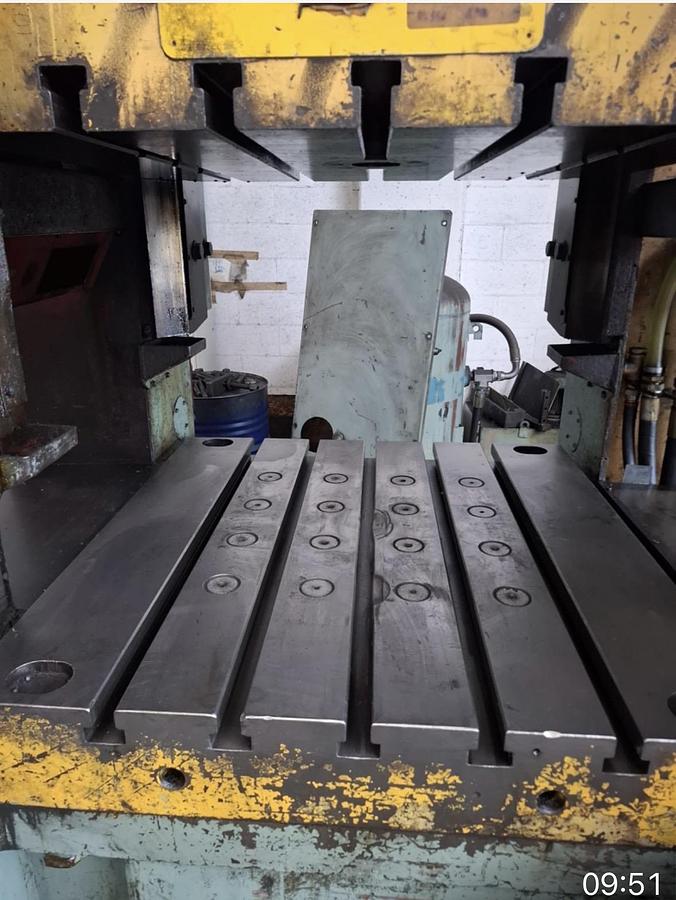

| Table - x (mm) | 1000 |
| Table - width (mm) | 1000 |
| Slide - stroke (mm) | 250 |
| Number of strokes/min | 10>30 |
| Number of strokes/minute | 10>30 |
| Subtype (DM/CDC) | DOUBLE MOUNTING FRAME |
| Frame (H/C) | H FRAME |
| Revision | 2015 |
| Inspection | 2015 |
| Drive system (eccentric/link motion/knucle joint/hydraulic/screw fly) | ECCENTRIC |
| Table - depth (mm) | 1000 |
| Activation system (eccentric/link motion/knucle joint/oleodynamic/screw fly) | ECCENTRIC |
| Sled - width (mm) | 800 |
| Table - y (mm) | 1000 |
| Sled - depth (mm) | 800 |
| Sled - adjustable stroke (mm) | 250 |
| Slide - x (mm) | 800 |
| Sled - recording (mm) | 140 |
| Slide - adjustable stroke (mm) | 250 |
| Slide - y (mm) | 800 |
| External dimensions - width (mm) | 2200 |
| Slide - registration (mm) | 140 |
| External dimensions - depth (mm) | 2000 |
| Piston rods | 1 |
| External dimensions - height above ground (mm) | 5930 |
| Slide - number of guides | 4 |
| Weight (ton) | 31 |
| Slide - adjustament system (guided/sphere/wedge) | GUIDED |
| Engine power (kW) | 40 |

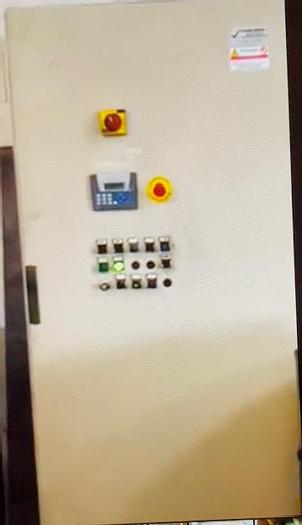

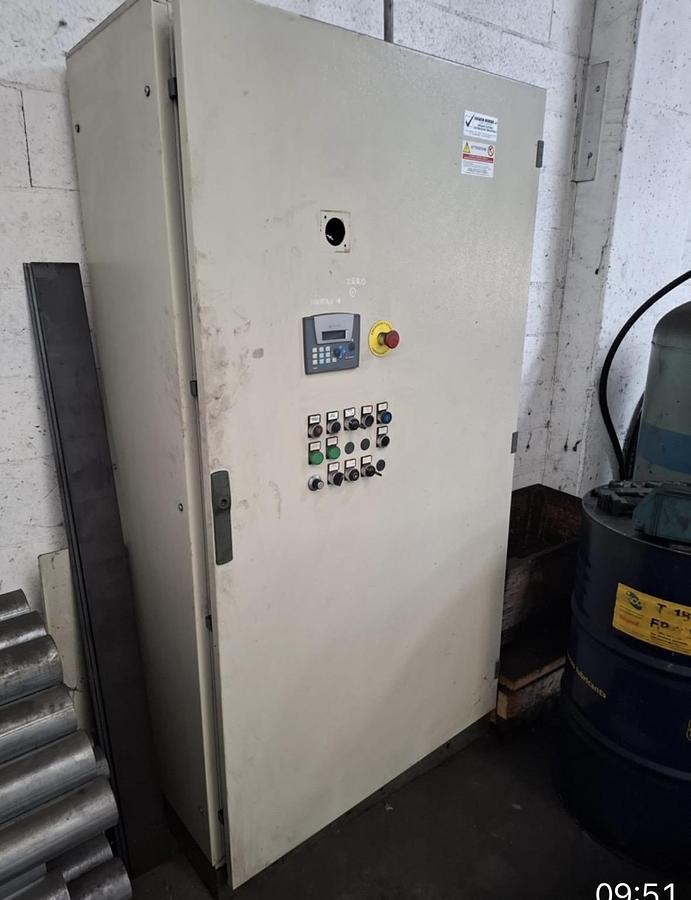

| Electrical panel conditions (working, missing, overhauled, to be overhauled) | NEW (2015) |
| Front span between the pillars (mm) | 1000 |
| Lateral window (mm) | 600 |

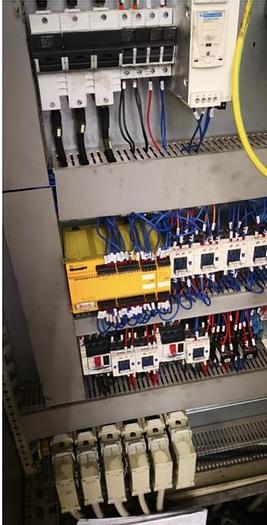

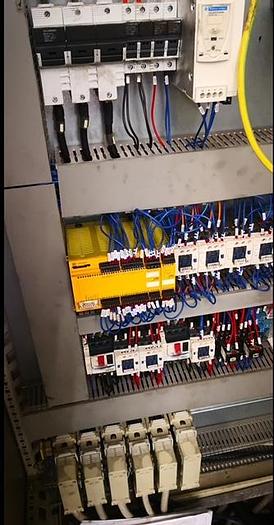

| Electrical components - more info | INVERTER |
| Conditions | WORKING |
| External dimensions - X (mm) | 2200 |
| External dimensions - Y (mm) | 2000 |
| Push points | 2 |
| Sled - number of guides | 8 |
| External dimensions - height (mm) | 5930 |
| Sled - adjustment system (guided/ball/wedge) | GUIDED |
| Front clearance between pillars (mm) | 4300 |
| Number of strokes / min | 10> 30 |
| Side window between pillars (mm) | 1000 |
| Motor power (kW) | 40 |
| Blank holder cushion - total force (ton) | 400 |
| Electrical panel conditions (working/missing/complete inspection/inspection required) | NEW (2015) |
| Foundation (cm) | YES |
| Electrical components - other infos | INVERTER |
| Electrical components - number of motors | 2 |
| Electrical cabinet conditions (working, missing, refurbished, to be refurbished) | MISSING |
| Subtype (DM / CDC) | DOUBLE UPRIGHT |
| Overload | YES |
| Drive system (eccentric / link motion / knucle joint / hydraulic / screw fly) | ECCENTRIC |
| Slide - depth (mm) | 800 |
| Slide - width (mm) | 800 |
| Motor power (kw) | 40 |
| Conections electrical panel (working, missing, overhauled, to be overhauled) | NEW (2015) |
| Slide - adjustment system (guided / ball / wedge) | GUIDED |
| Front gap between uprights (mm) | 4300 |
| Side window between the uprights (mm) | 1000 |
| Electrical components - No. of motors | 2 |
