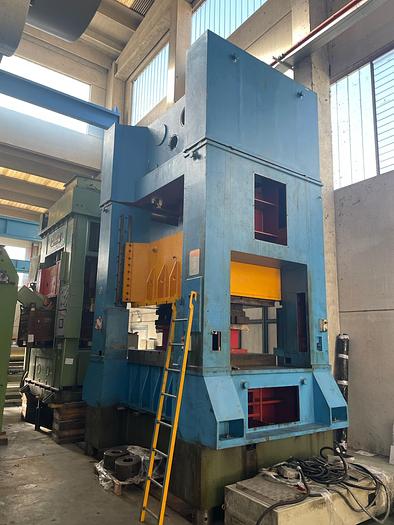

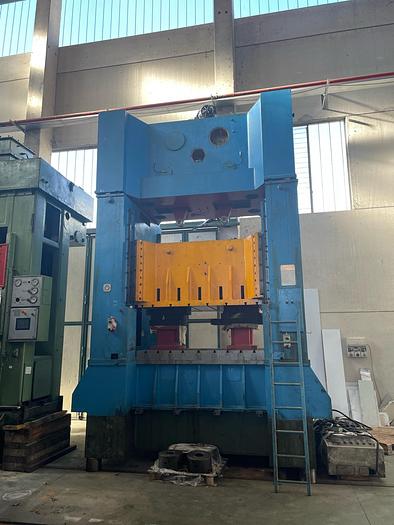

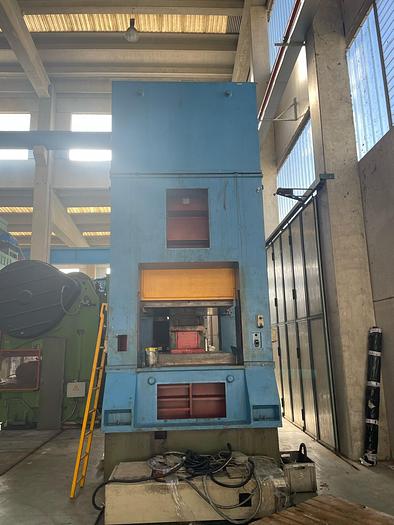

RADAELLI 300 tons
RADAELLI 300 tons
Location:Avigliana, Italy

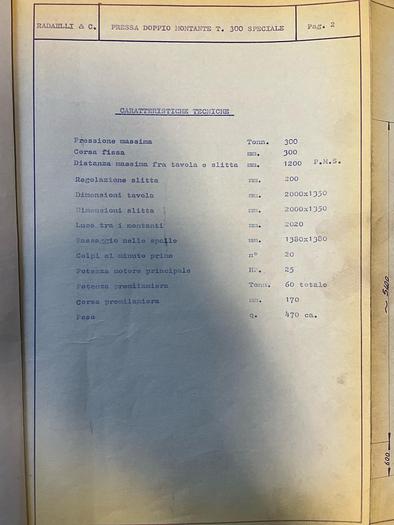

Specifications
| Manufacturer | RADAELLI |

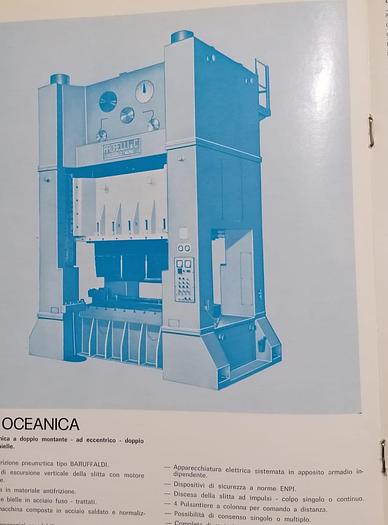

| Model | OCEANIA 1 |
| Year | 1981 |
| Condition | Used |
| Serial Number | 006/81 |
| Stock Number | 434 |
| Ton | 300 |

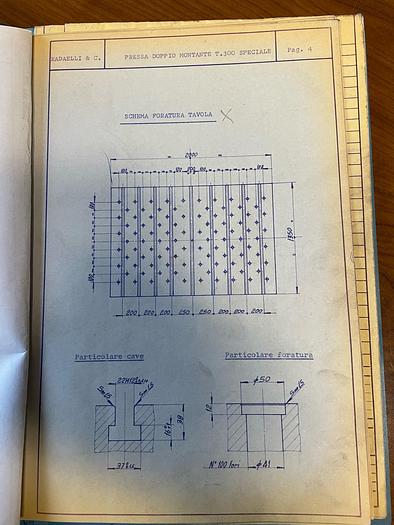

| Table - x (mm) | 2000x1350 |
| Table - width (mm) | 2000x1350 |
| Slide - stroke (mm) | 300 |
| Number of strokes/min | 20>30 |
| Number of strokes/minute | 20>30 |
| Subtype (DM/CDC) | DOUBLE UPRIGHT |
| Frame (H/C) | H FRAME |
| Revision | 2023 |
| Inspection | 2023 |
| Conditions | Overhauled |
| Activation system (eccentric/link motion/knucle joint/oleodynamic/screw fly) | ECCENTRIC |
| Drive system (eccentric/link motion/knucle joint/hydraulic/screw fly) | ECCENTRIC |
| Slide - x (mm) | 2000x1350 |
| Slide - width (mm) | 2000x1350 |
| Number of strokes / min | 20> 30 |
| Slide - adjustment (mm) | 200 |
| Push points | 2 |
| Slide - registration (mm) | 200 |
| Sled - number of guides | 8 |
| Piston rods | 2 |
| Slide - adjustment system (guided/ball/wedge) | GUIDED |
| Slide - number of guides | 8 |
| Light pms (mm) | 1200 |
| Slide - adjustament system (guided/sphere/wedge) | GUIDED |
| Front light between uprights (mm) | 2020 |
| Tdc span (mm) | 1200 |
| Side window between uprights (mm) | 1300 |
| Front span between the pillars (mm) | 2020 |
| Blank holder cushion - total force (ton) | 60 |
| Lateral window (mm) | 1300 |
| Blank holder cushion - movement (hydraulic/pneumatic/hydropneumatic) | TIRE |
| Die cushion - motion (hydraulic/pneumatic/hydropneumatic) | PNEUMATIC |
| Blank holder cushion - number of cushions | 2 |
| Die cushion - number of cushions | 2 |
| Blank holder cushion - stroke (mm) | 170 |
| Die cushion - total strength (ton) | 60 |

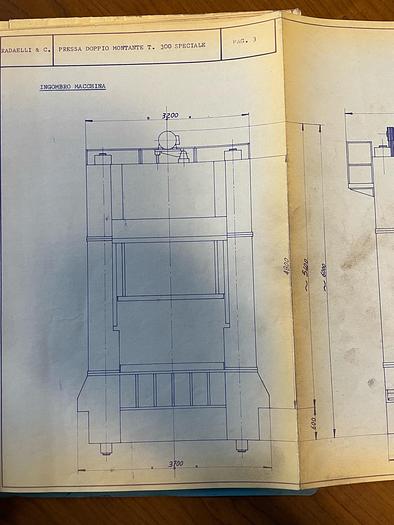

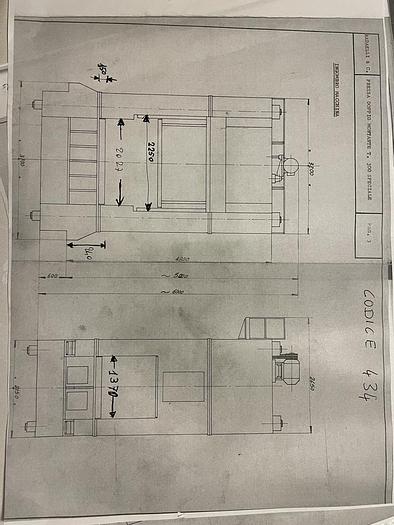

| External dimensions - width (mm) | 3200 |
| Subtype (DM / CDC) | DOUBLE UPRIGHT |
| External dimensions - depth (mm) | 2000 |
| Die cushion - stroke (mm) | 170 |
| External dimensions - height above ground (mm) | 5000 |
| External dimensions - X (mm) | 3200 |
| Weight (ton) | 51 |
| External dimensions - Y (mm) | 2000 |
| Foundation (cm) | 50 |
| Electrical components - number of motors | 2 |
| External dimensions - height (mm) | 5000 |
| Motor power (kw) | 20 |

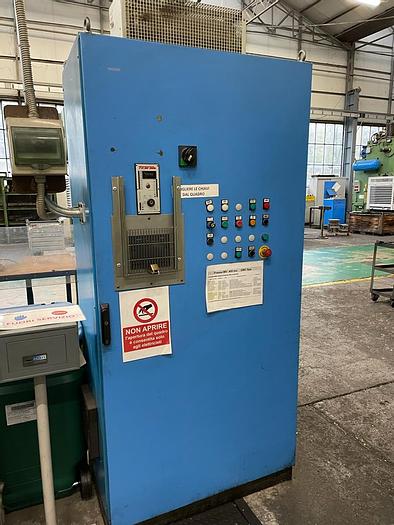

| Electrical panel conditions (working, missing, overhauled, to be overhauled) | Overhauled |
| Photocells (front/rear) | FRONT AND REAR |
| Drive system (eccentric / link motion / knucle joint / hydraulic / screw fly) | ECCENTRIC |

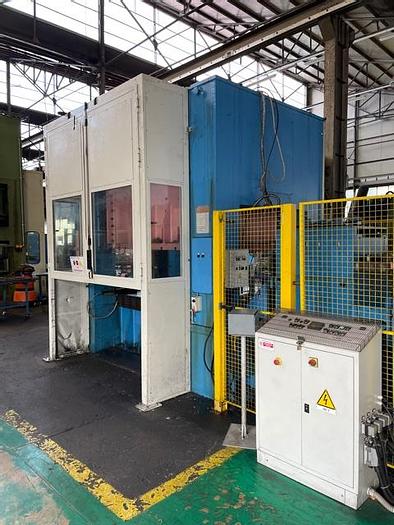

| Safety protections (front/rear) | FRONT AND REAR |
| Overload (hydraulic/mechanical) | PLUMBER |

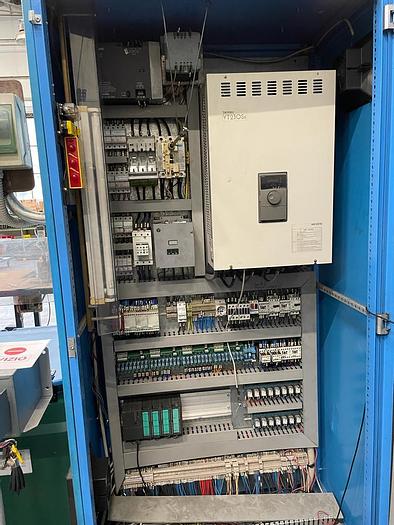

| Electrical components - further info | NEW ELECTRIC PANEL (2015) |
| Overload | hydraulic |
| Motor power (kW) | 20 |
| Electrical panel conditions (working/missing/complete inspection/inspection required) | WORKING |
| Light barriers (frontal/posterior) | FRONTAL AND POSTERIOR |
| Safety protections (frontal/posterior) | FRONTAL AND POSTERIOR |
| Electrical components - other infos | NEW ELECTRICAL PANEL (2015) |
| Slide - adjustment system (guided / ball / wedge) | GUIDED |
| Front gap between uprights (mm) | 2020 |
| Side window between the uprights (mm) | 1300 |
| Blank holder cushion - movement (hydraulic / pneumatic / hydro-pneumatic) | TIRE |
| Electrical components - No. of motors | 2 |
| Safety protections (front / rear) | FRONT AND REAR |
| Conections electrical panel (working, missing, overhauled, to be overhauled) | WORKING |
| Photocells (front / rear) | FRONT AND REAR |
| Overload (hydraulic / mechanical) | PLUMBER |
| Electrical components - more info | NEW ELECTRICAL PANEL (2015) |
