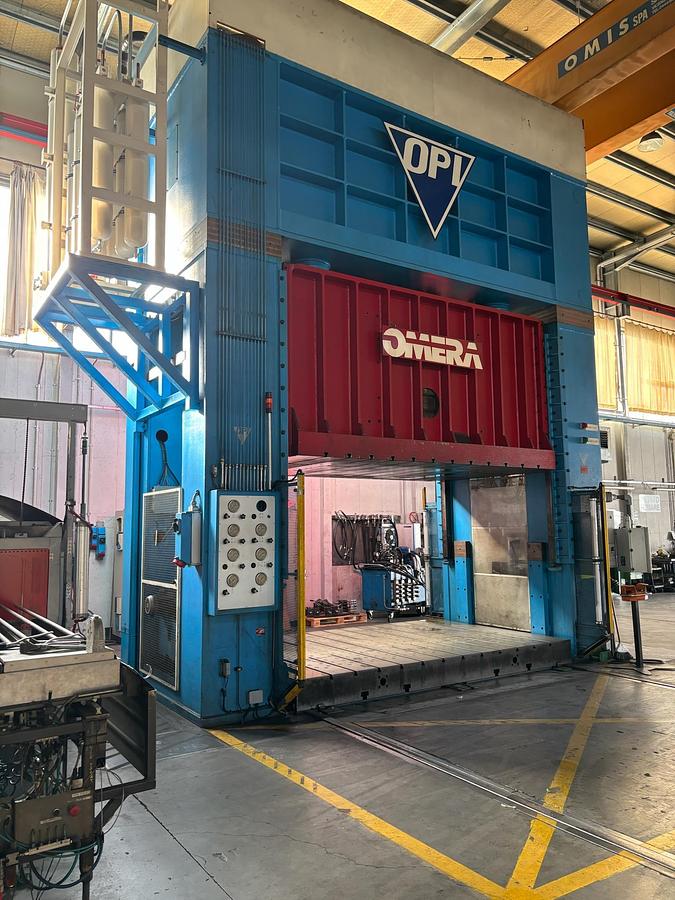

OMERA OP 2/1200 ton
Omera 1200 ton 4100x2500
OMERA OP 2/1200 ton
Location:Vicenza, Italy
Specifications
| Manufacturer | OMERA |
| Model | OP 2/1200 |
| Year | 1998 |
| Condition | Used |
| Serial Number | 1098129 |
| Stock Number | 622 |
| Ton | 1200(500+700) |
| Table - width (mm) | 4100x2500 |
| Slide - stroke (mm) | 1000-1400 |
| Subtype (DM/CDC) | DM-DE-IDRO |
| CE mark | Yes |
| Conditions | working |
| Drive system (eccentric/link motion/knucle joint/hydraulic/screw fly) | Hydraulic |
| Pull-out table (front/side/T-track) | Yes |
| Sled - width (mm) | 4100x2500(2200x1600) |
| Push points | 6 |
| Sled - number of guides | 8 |
| Approach speed | 340 |
| 100% working speed | 20 |
| PMS light (mm) | 2000(2400) |
| Blank holder cushion - total force (ton) | 600 |
| Blanking pad - width x depth (mm) | 3500x2000 |
| Blanking pad - movement (hydraulic/pneumatic/hydropneumatic) | Plumber |
| Blank holder cushion - stroke (mm) | 400350 |
| External dimensions - width (mm) | 6000x3000 |
| External dimensions - height above ground (mm) | 7600 |
| Weight (ton) | 210 |
| Foundation (cm) | 3000 |
| Engine power (kW) | 75+75 |

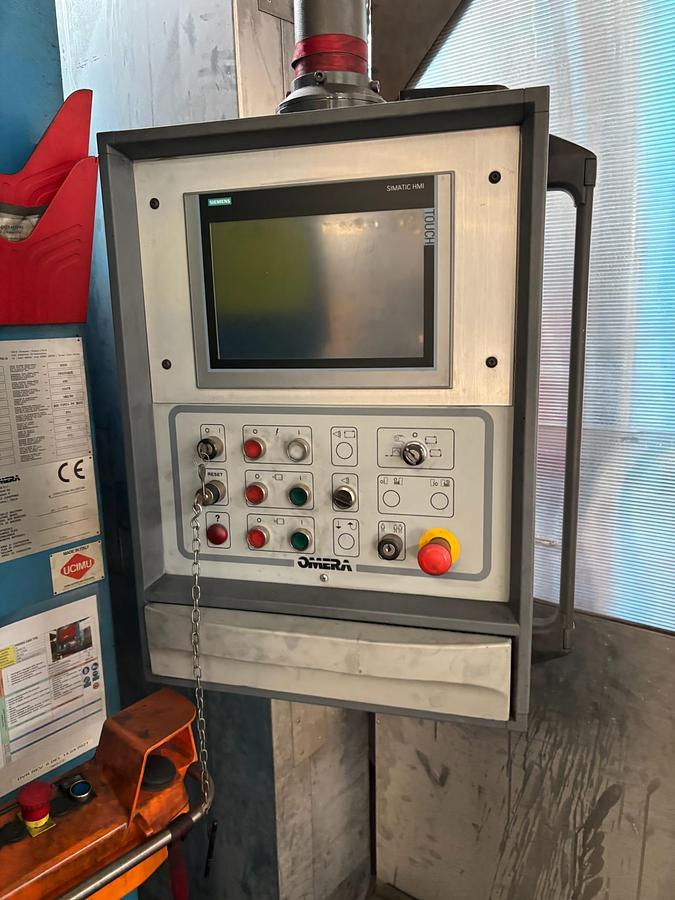

| Electrical panel conditions (working, missing, overhauled, to be overhauled) | working |
| Photocells (front/rear) | Yes |
| Safety guards (front/rear) | Yes |
| Cylinder block valve | Yes |
| Mechanical slide block | Yes |
| Proportional valves | Yes |
| Accessories / other data | Front removable table, anti-splash cylinders |
