ROCHE Gooseneck 250 tons
Sold
ROCHE Gooseneck 250 tons
Location:Villanova d'Asti, Italy
Specifications
| Manufacturer | ROCHE |
| Model | CDC 250 ton - 1 BIELLA |
| Year | 1982 |
| Condition | Used |
| Stock Number | 532 |
| Ton | 250 |
| Board - width (mm) | 1250 x 1000 |
| Number of strokes/min | 40 |
| Subtype (DM/CDC) | CDC |
| CE mark | NO |
| Revision | 2023 |
| Conditions | WORKING REVISED |
| Drive system (eccentric/link motion/knucle joint/hydraulic/screw fly) | ECCENTRIC |
| Sled - width (mm) | 1000 x 800 |
| Slide - adjustable stroke (mm) | 20 - 250 |
| Slide - registration (mm) | 100 |
| Push points | 1 |
| Slide - number of guides | 6 |
| Slide - adjustment system (guided/ball/wedge) | driven |
| Light pms (mm) | 800 |
| External dimensions - width (mm) | 3200 x 1800 |
| External dimensions - height above ground (mm) | 4800 |
| Weight (tons) | 80 |
| Motor power (kw) | 25 |

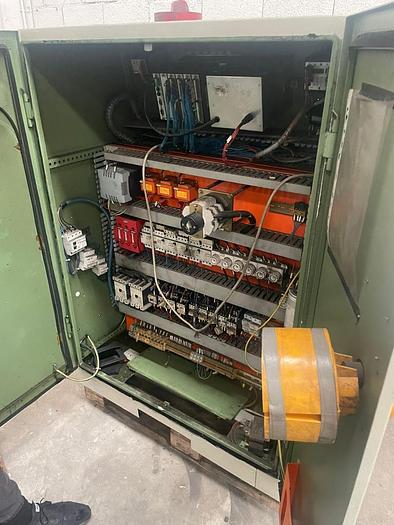

| Electrical panel conditions (working, missing, overhauled, to be overhauled) | working |
| Overload (hydraulic/mechanical) | plumber |
